Bracket - Racetrack - C-Pillar - Lower - LH - Remove And Replace: Remove
- Open all the doors and lower the LH front window.
- Move the front seats forward.
- Fold the 2nd row seat backs to the down position.
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
- Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
- Remove rear trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .

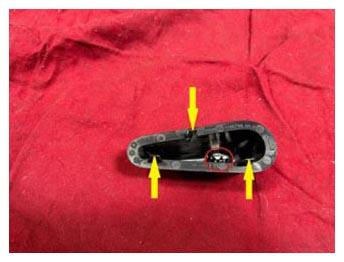

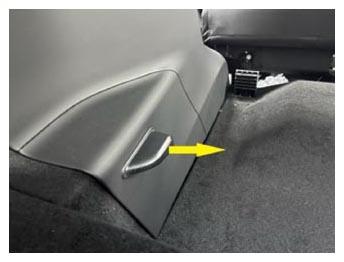

- Release the clip and tabs (x3) that attach the LH trunk side mini nub to the vehicle, and then remove the trim from the vehicle.
- Remove the LH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE)
- Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

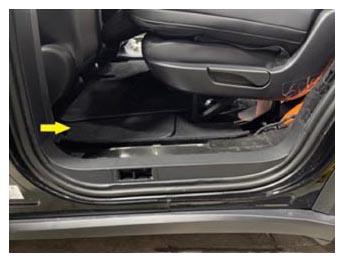

- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

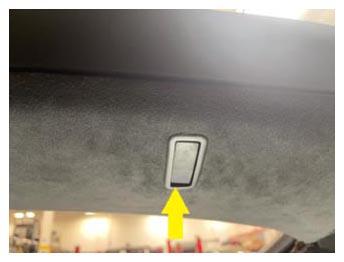

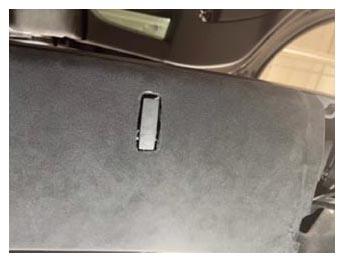

- Remove the LH coat hook bezel.

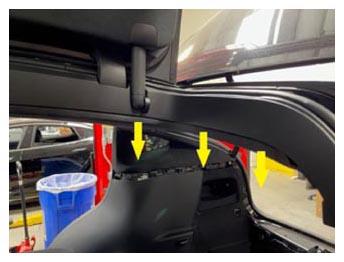

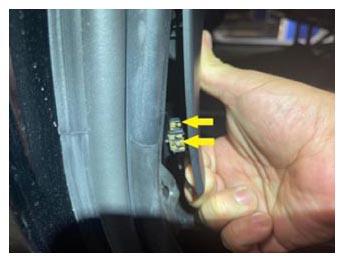

- Release the clips (x7) that attach the rear of the LH rear portion of the headliner to the vehicle.

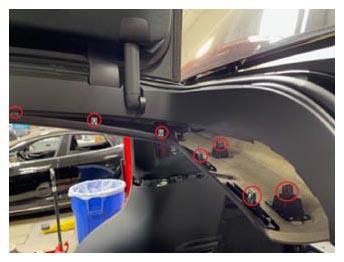

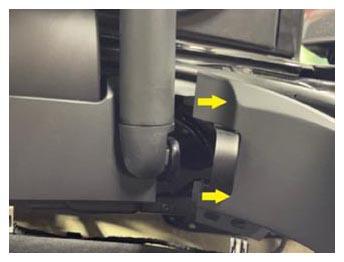

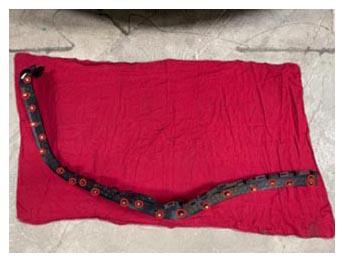

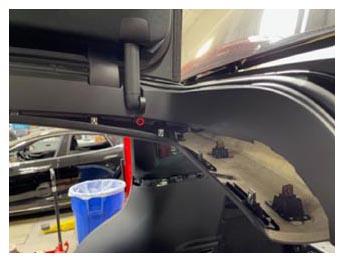

- Remove the screw and release clips (x20) that attach the LH C-pillar rear racetrack trim to the vehicle, and then remove the trim from the vehicle.
Tip: Use of the following tool(s) is recommended:
- T20 socket

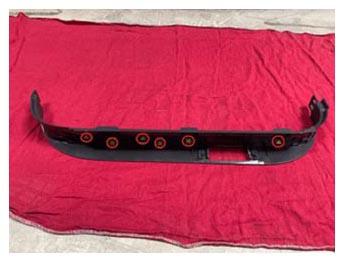

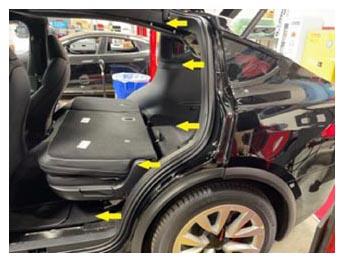

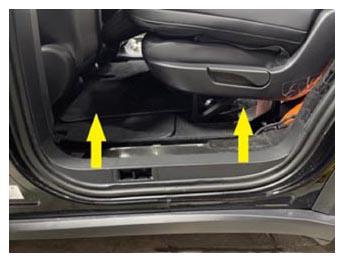

- Release the clips (x8) that attach the LH lower racetrack trim to the vehicle, and then remove the trim from the vehicle.

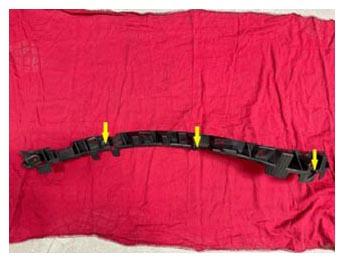

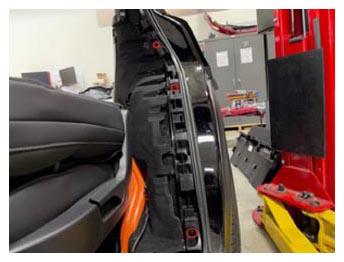

- Remove the bolts (x3) that attach the LH lower C-pillar racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
Tip: Use of the following tool(s) is recommended:
- T25 socket
