Bracket - Racetrack - C-Pillar - Lower - LH - Remove And Replace: Install

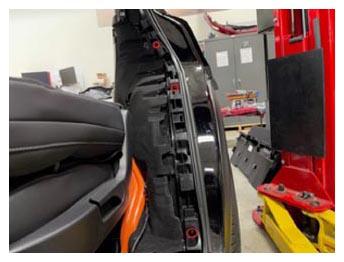

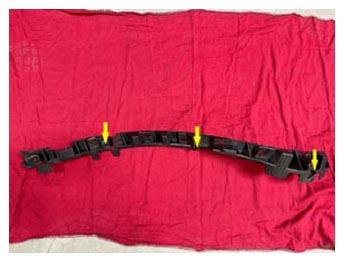

- Position the LH lower C-pillar racetrack bracket into the vehicle, and then install the bolts (x3) that attach the bracket to the vehicle.
Tip: Use of the following tool(s) is recommended:
- T25 socket

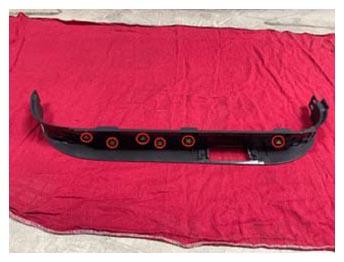

- Position the LH lower racetrack trim into the vehicle, and then secure the clips (x8) that attach the trim to the vehicle.

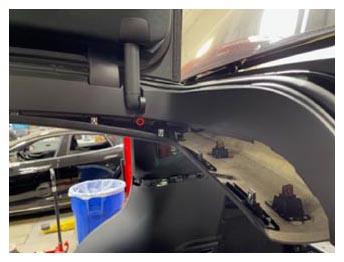

- Position the LH C-pillar rear racetrack trim into the vehicle, and then install the screw and secure clips (x20) that attach the trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- T20 socket

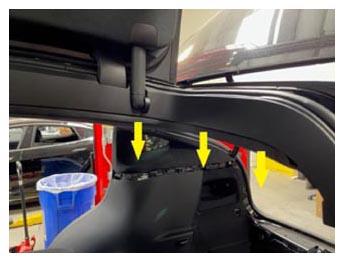

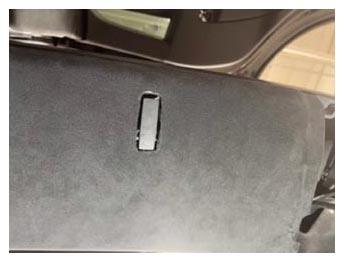

- Secure the clips (x7) that attach the rear of the LH rear portion of the headliner to the vehicle.

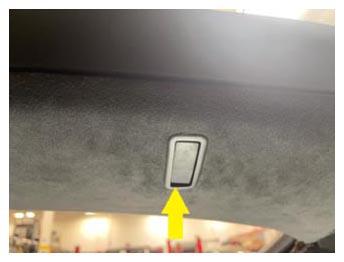

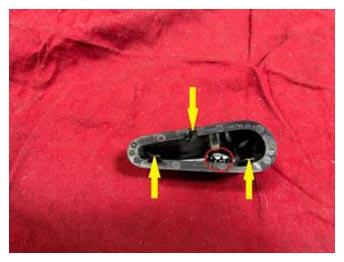

- Install the LH coat hook bezel.
- Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

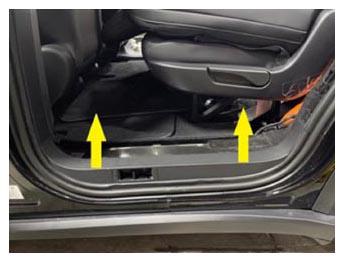

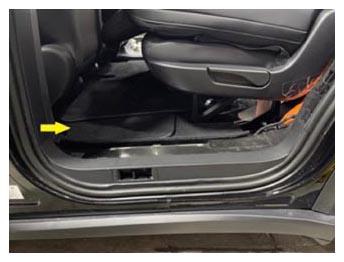

- Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Install the LH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .

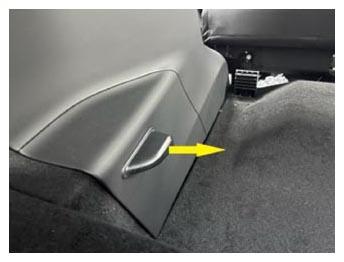

- Position the LH trunk side mini nub into the vehicle, and then secure the clip and tabs (x3) that attach the trim to the vehicle.
- Install rear trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .
- Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
- Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .

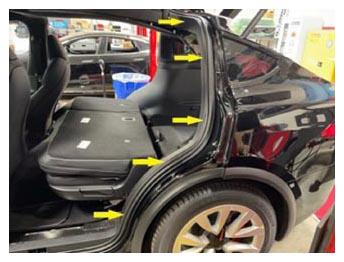

- Move all the seats back to the original positions.
- Close all the doors and raise the LH front window.
