Bracket - Racetrack - B-Pillar - Upper - LH - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Remove the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .

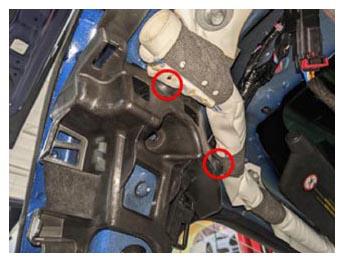

- Release the clips (x2) that attach the LH curtain airbag to the LH upper B-pillar racetrack bracket, and then release the airbag from the bracket.

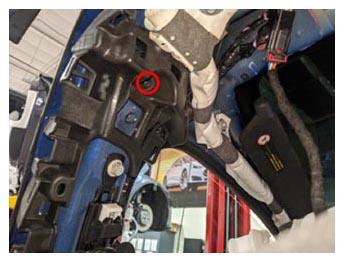

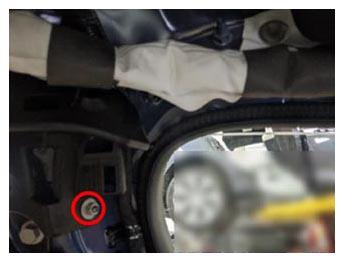

- Remove the bolt that attaches the LH upper B-pillar racetrack bracket to the vehicle.
Tip: Use of the following tool(s) is recommended:
- T25 socket

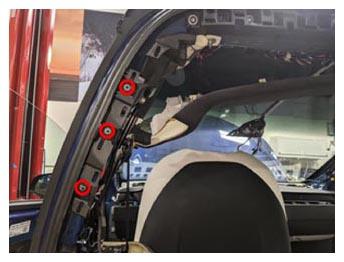

- Remove the nuts (x4) that attach the LH upper B-pillar racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
