Bracket - Racetrack - B-Pillar - Upper - LH - Remove And Replace: Install

Position the LH upper B-pillar racetrack bracket into the vehicle, and then install the nuts (x4) that attach the bracket to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

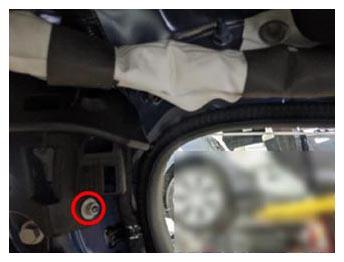

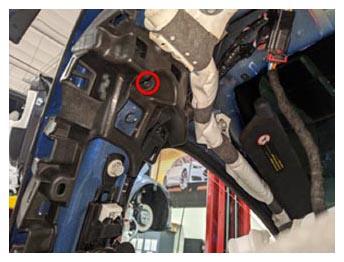

Install the bolt that attaches the LH upper B-pillar racetrack bracket to the vehicle.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T25 socket
Courtesy of TESLA, INC.

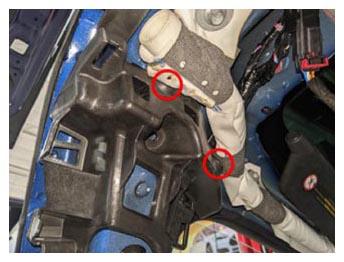

Secure the clips (x2) that attach the LH curtain airbag to the LH upper B-pillar racetrack bracket.

Courtesy of TESLA, INC.
Install the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .
Raise the front windows and close all the doors.
