Bracket - Racetrack - B-Pillar - Mid - LH - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Remove the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .

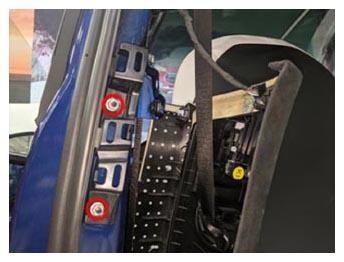

- Remove the nuts (x2) that attach the LH mid B-pillar racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
