Bracket - Racetrack - B-Pillar - Mid - LH - Remove And Replace: Install

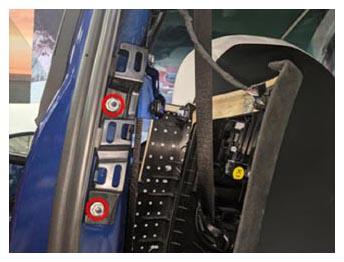

- Position the LH mid B-pillar racetrack bracket into the vehicle, and then install the nuts (x2) that attach the bracket to the vehicle.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Install the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .
- Raise the front windows and close all the doors.
