Bracket - Racetrack - B-Pillar - Lower - LH - Remove And Replace: Install

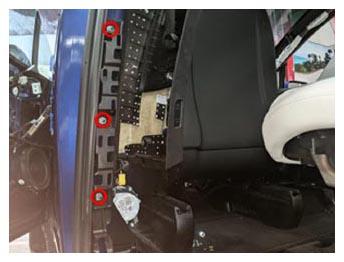

  1. Position the LH lower B-pillar racetrack bracket on the vehicle, and then install the nuts (x3) that attach the bracket to the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm hex
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15395614Courtesy of TESLA, INC.
  2. Install the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .

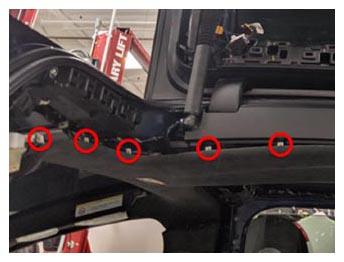

  3. Install the clips (x5) that attach the LH headliner to the vehicle.
    G15395615Courtesy of TESLA, INC.
  4. Install the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .
  5. Install the LH lower racetrack trim. See RACETRACK TRIM - LOWER - LH (REMOVE AND REPLACE) .

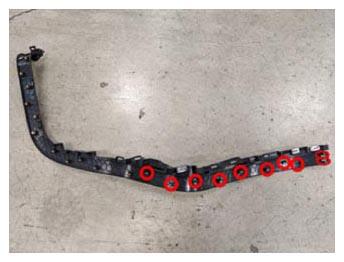

  6. Install the clips (x10) that attach the lower portion of the LH rear racetrack trim to the vehicle.
    G15395616Courtesy of TESLA, INC.

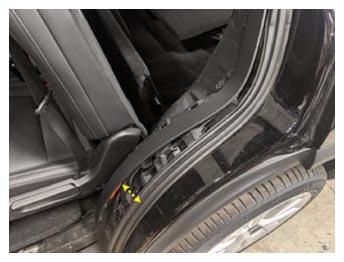

    G15395617Courtesy of TESLA, INC.
  7. Ensure that the falcon wing door seal is seated behind the LH rear racetrack trim.

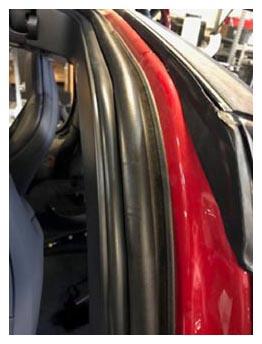

    G15395618Courtesy of TESLA, INC.
  8. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  9. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  10. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    G15395619Courtesy of TESLA, INC.

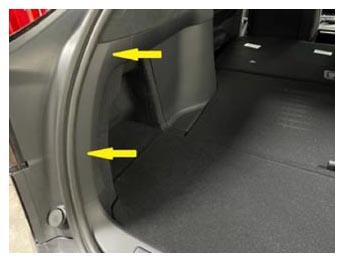

    G15395620Courtesy of TESLA, INC.
  11. Move the LH 3rd row seat to original position.
  12. Close the liftgate.

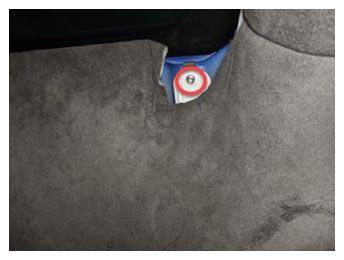

  13. Install the screw that attaches the LH front end of the headliner to the vehicle.

    2 N.m (1.5 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T20 socket
    G15395621Courtesy of TESLA, INC.

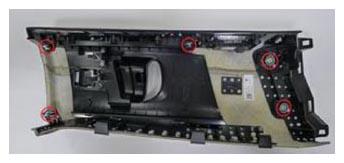

  14. Connect the LH falcon wing door button electrical connector, and then install the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar.
    NOTE: Replace the clips if damaged.

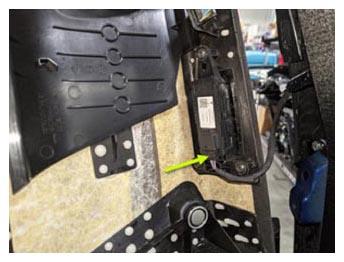

    G15395622Courtesy of TESLA, INC.
    G15395623Courtesy of TESLA, INC.

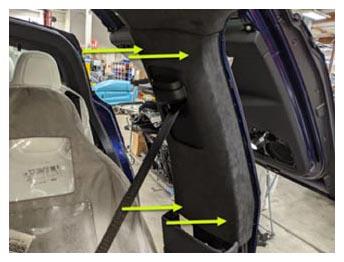

    G15395624Courtesy of TESLA, INC.
  15. Install the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  16. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  17. Install the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .

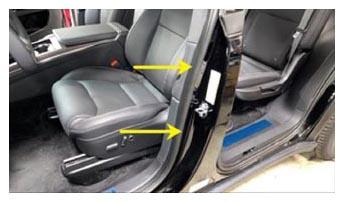

  18. Fully seat the LH front door seal on the B-pillar trim.
    G15395625Courtesy of TESLA, INC.
  19. Move the LH front seat rearward.
  20. Position the LH upper A-pillar trim for installation.

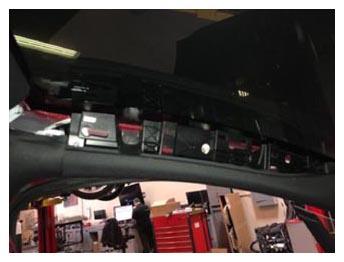

    G15395626Courtesy of TESLA, INC.
  21. Install the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 10 mm hex
    • Flex head ratchet/flex head torque wrench

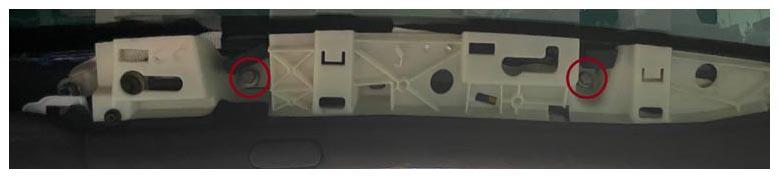

    G15395627Courtesy of TESLA, INC.
  22. Install the screw that attaches the LH upper A-pillar trim to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

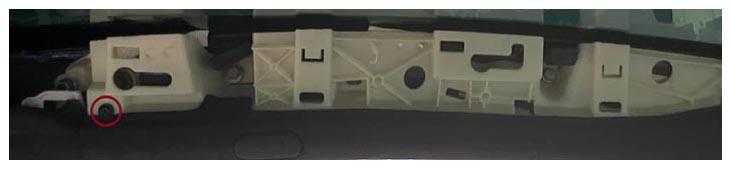

    G15395628Courtesy of TESLA, INC.
  23. Install the nut that attaches the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Install a new nut.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 13 mm hex
    • Flex head ratchet/flex head torque wrench
    G15395629Courtesy of TESLA, INC.
  24. Install the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
  25. Move the LH front seat to original position.
  26. Close the LH and RH falcon wing doors.
  27. Raise the LH and RH front windows.
  28. Close the LH and RH front doors.
