Bracket - A-Pillar - Upper - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Move the driver seat rearward.
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
- Remove the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Remove the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
- Remove the LH upper A-pillar trim. See TRIM - A-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

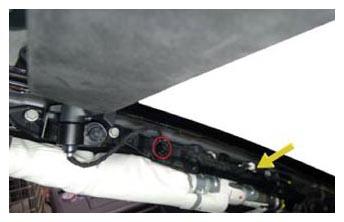

- Release the clip that attaches the LH sun visor harness to the A-pillar, and then disconnect the electrical connector.

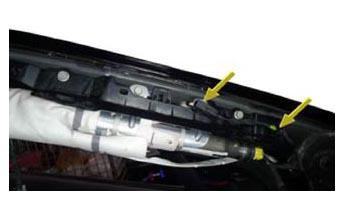

- Release the clips (x2) that attach the harness to the LH upper A-pillar bracket.

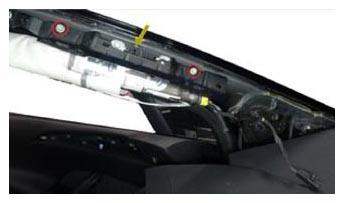

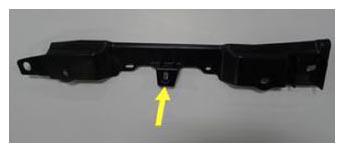

- Remove the bolts (x2) that attach the LH upper A-pillar bracket to the vehicle, and then remove the bracket from the vehicle.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
