Bracket - A-Pillar - Upper - LH - Remove And Replace: Install

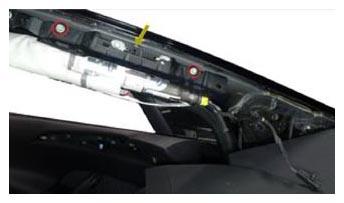

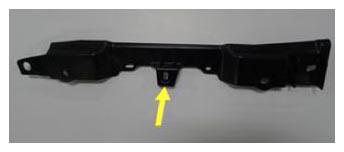

- Position the LH upper A-pillar bracket into the vehicle, and then install the bolts (x2) that attach the bracket to the vehicle.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

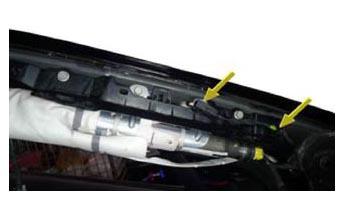

- Secure the clips (x2) that attach the harness to the LH upper A-pillar bracket.

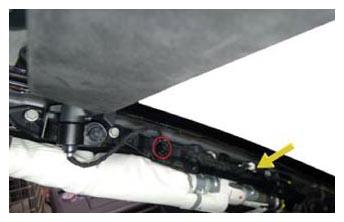

- Secure the clip that attaches the LH sun visor harness to the A-pillar, and then connect the electrical connector.
- Install the LH upper A-pillar trim. See TRIM - A-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Install the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
- Install the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
- Move the driver seat to the original position.
- Raise the LH front window and close the LH front door.
