Bezel - Striker - Racetrack - LH - Remove And Replace: Remove

  1. Open LH front door and lower the LH front window.
  2. Open LH rear door.
  3. Release the tabs (x4) that attach the LH racetrack striker bezel to the vehicle, and then remove the bezel from the vehicle.

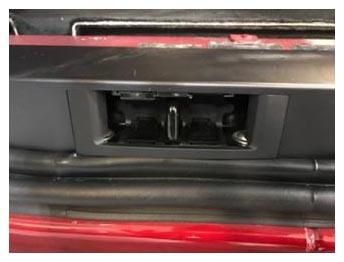

    G15395587Courtesy of TESLA, INC.

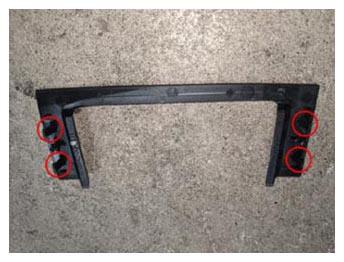

    G15395588Courtesy of TESLA, INC.
