Trim - Sill - Trunk - Remove And Replace: Install

  1. Install the trunk sill trim to the body, and then fasten the clips (x4) and install new bolts (x2) to attach the trim to the body.

    2.5 N.m (1.8 ft-lbs)

    G15397069Courtesy of TESLA, INC.
    G15397070Courtesy of TESLA, INC.

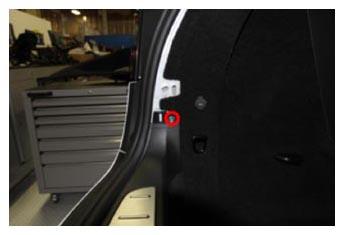

    G15397071Courtesy of TESLA, INC.
  2. Install the RH trunk sill side trim to the body, and then fasten the clips (x4) that attach the side trim to the body.
    G15397072Courtesy of TESLA, INC.
  3. Install the LH trunk sill side trim to the body, and then fasten the clips (x4) that attach the side trim to the body.
    G15397073Courtesy of TESLA, INC.
  4. Install the trunk rear load floor.
    G15397074Courtesy of TESLA, INC.
  5. Close the liftgate.
