Trim - Side - Trunk - RH - Remove And Replace: Remove
- Open all the doors and lower the LH front window.
- Move the front seats forward.
- Fold the 2nd row seats to the down position.
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE)
.
- Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE)
.
- Remove the RH trunk load floor bracket cover. See COVER - BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE)
.
- Remove the trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE)
.
- Remove the LH and RH side rear trunk garnish. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
- Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
- Remove the push clips (x4) and release the clips (x2) that attach the rear wall load support to the vehicle, and then remove the support from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Remove the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Release the RH trunk tie down from the RH side trim carpet.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

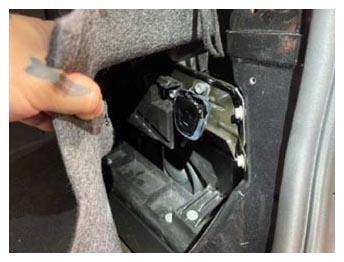

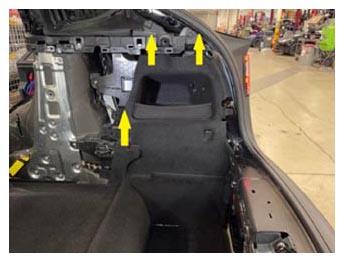

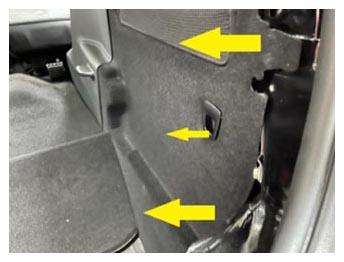

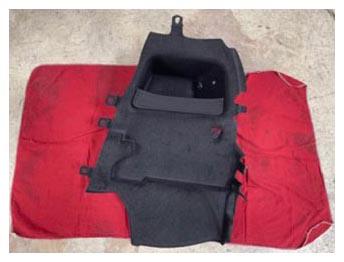

- Remove the push clips (x4) that attach the RH trunk side trim to the vehicle, disconnect the electrical connectors (x2), and then remove the side trim from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
