Trim - Side - Trunk - LH (6/7 Seat) - Remove And Replace: Remove
- Open the LH rear door.
- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE)
.
- Remove the side trunk load floor. See TRUNK LOAD FLOOR - SIDE (REMOVE AND REPLACE)
.
- Remove the rear trunk carpet. See:

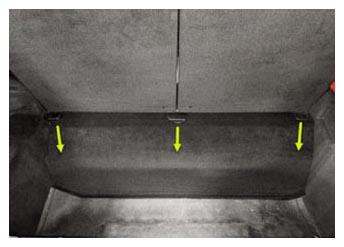

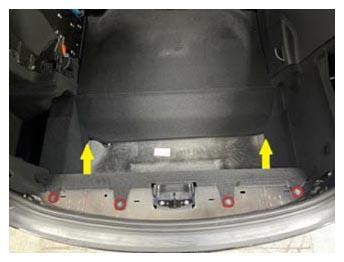

- Slide the trunk carpet off of the anchors, and then remove the carpet from the vehicle.
 Courtesy of TESLA, INC.
|
- Remove the LH and RH side rear trunk garnishes. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
- Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

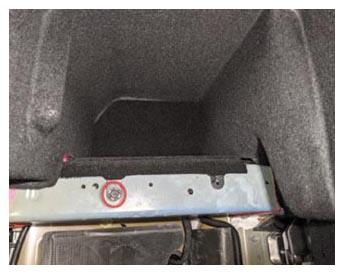

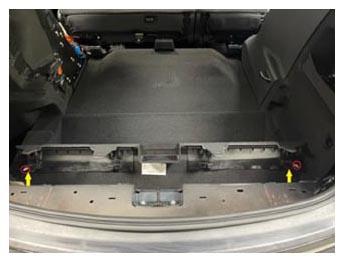

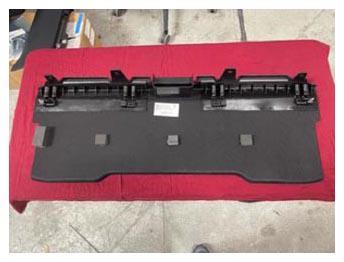

- Remove the push clips (x4) and release the clip that attach the rear wall load support to the vehicle, and then remove the support from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the LH rear trunk crush can trim. See TRIM - CRUSH CAN - REAR TRUNK - LH (REMOVE AND REPLACE)
.

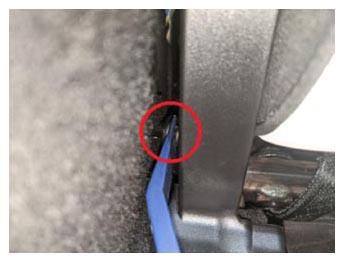

- Release the clip that attaches the LH soft trim pocket bracket to the LH frame rail, and then remove the pocket bracket from the vehicle.
 Courtesy of TESLA, INC.
|
- Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Fold the LH 3rd row seat back into the down position.
- Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

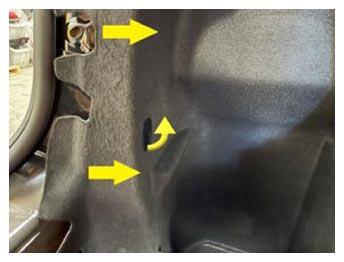

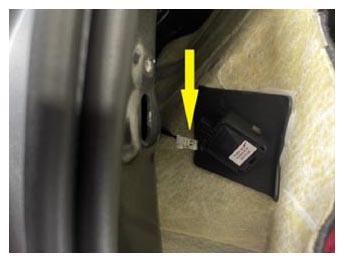

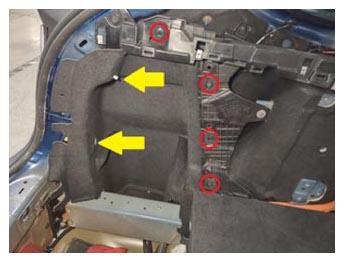

- Remove the push clips (x5), disconnect the connector, release the trunk tie down ring, and then remove the LH trunk side trim from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
