Trim - Side - Trunk - LH (6/7 Seat) - Remove And Replace: Install

  1. Position the LH trunk side trim into the vehicle, secure the trunk tie down ring, connect the connector, and then install the push clips (x5).
    NOTE: Insert the trunk tie down ring. Place the clip into the trim tool to aide installation of the lower clip.

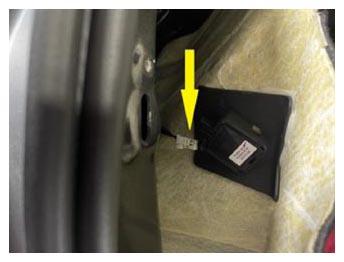

    G15397003Courtesy of TESLA, INC.

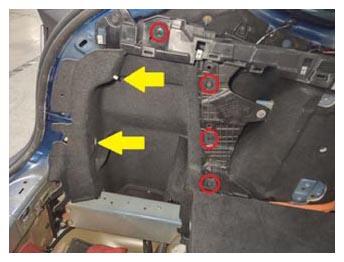

    G15397004Courtesy of TESLA, INC.

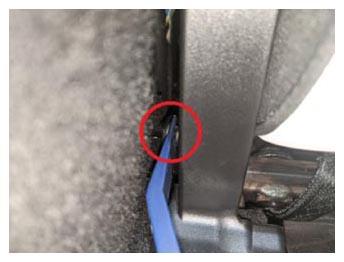

    G15397005Courtesy of TESLA, INC.

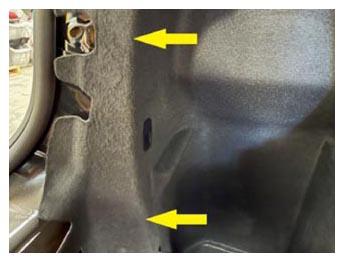

    G15397006Courtesy of TESLA, INC.
  2. Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  3. Fold the LH 3rd row seat back into the up position.
  4. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  5. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  6. Install the LH soft trim pocket bracket to the LH frame rail, and then fasten the clip that attaches the pocket bracket to the frame rail.

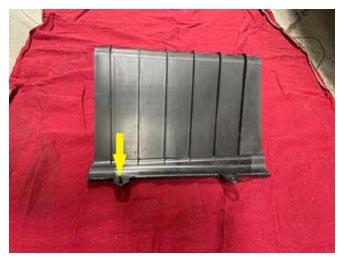

    G15397017Courtesy of TESLA, INC.

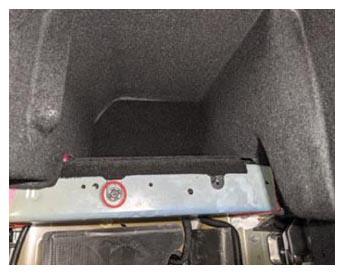

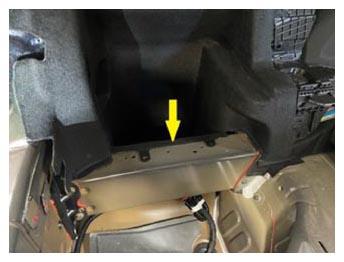

    G15397018Courtesy of TESLA, INC.
    G15397019Courtesy of TESLA, INC.
  7. Install the LH rear trunk crush can trim. See TRIM - CRUSH CAN - REAR TRUNK - LH (REMOVE AND REPLACE) .
  8. Position the rear wall load support into the vehicle, and then install the push clips (x4) and secure the clip that attach the support to the vehicle.

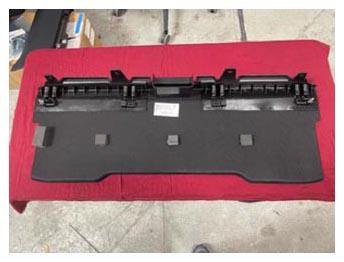

    G15397022Courtesy of TESLA, INC.

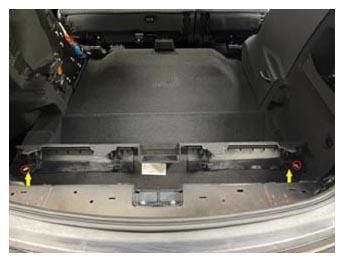

    G15397023Courtesy of TESLA, INC.

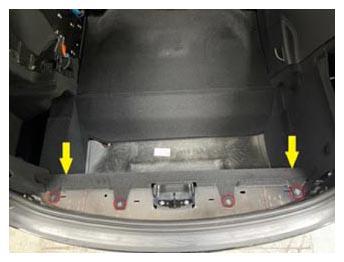

    G15397024Courtesy of TESLA, INC.
  9. Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  10. Install the LH and RH side rear trunk garnishes. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .
  11. Install the trunk carpet into the trunk, and then slide the carpet onto the anchors.

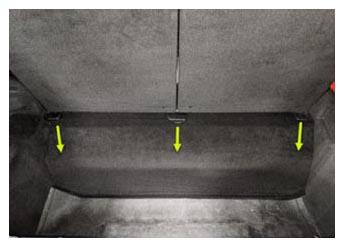

    G15397033Courtesy of TESLA, INC.
  12. Install the rear trunk carpet. See:
  13. Install the LH trunk pocket load floor. See TRUNK LOAD FLOOR - SIDE (REMOVE AND REPLACE) .
  14. Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  15. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
