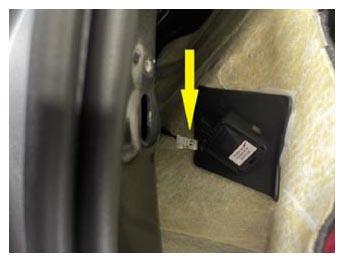

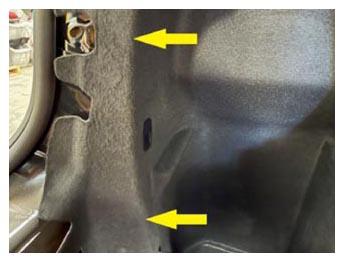

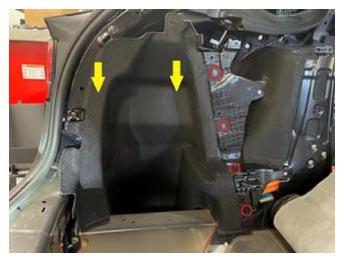

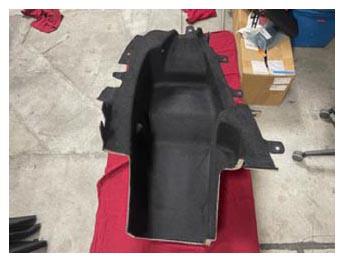

- Install trunk side trim carpet.
NOTE:
4x push clips, 1x connector, Insert trunk tie down ring.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

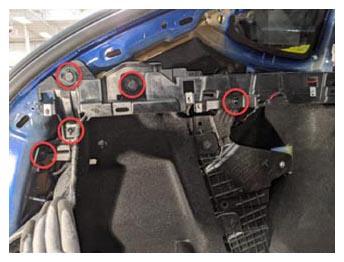

- Install LH mid C-pillar zone bracket.
NOTE:
2x screws, T20, 2.5 N.m, 3x push clips.
 Courtesy of TESLA, INC.
|
- Secure charge port manual release cable onto LH mid C-pillar zone bracket.
NOTE:
1x fir tree clip.
 Courtesy of TESLA, INC.
|

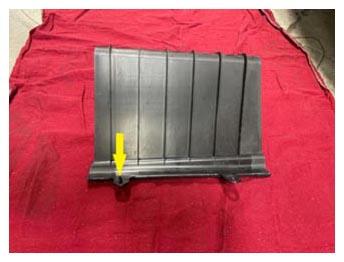

- Install LH soft trim pocket bracket.
NOTE:
1x push clip, 1 datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

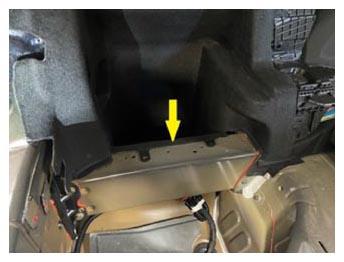

- Install LH crush can bracket.
NOTE:
3x clips, 1 datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

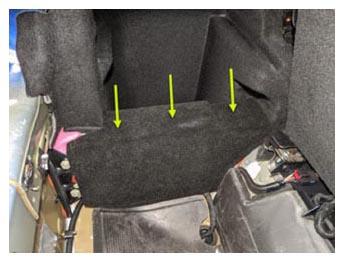

- Fold down trunk carpet.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

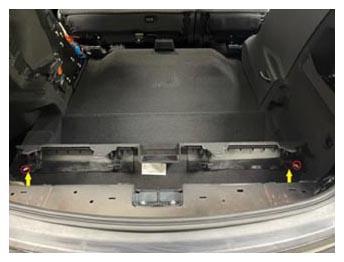

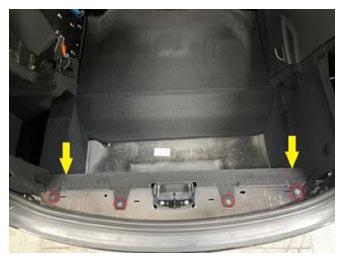

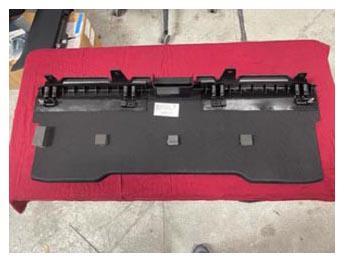

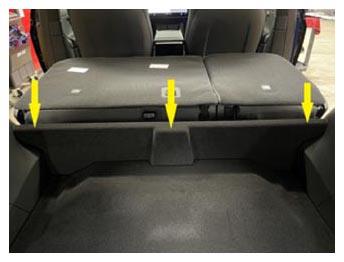

- Install rear wall load floor support.
NOTE:
4x push clips, 2x clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

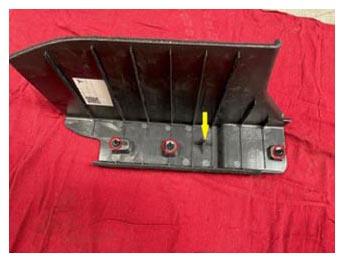

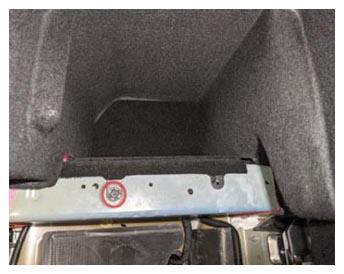

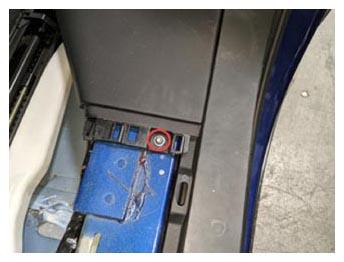

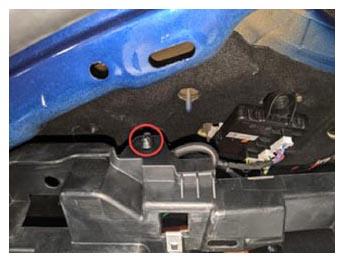

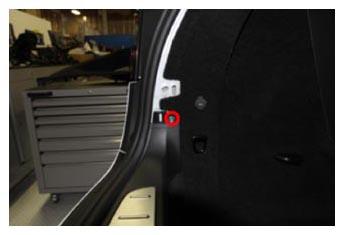

- Install LH lower C-pillar.
NOTE:
1x patch bolt, T25, 2.5 N.m, 2x screws, T20, 2 N.m, Install new patch bolt.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH side sill plate.
NOTE:
8x clips, 1x datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

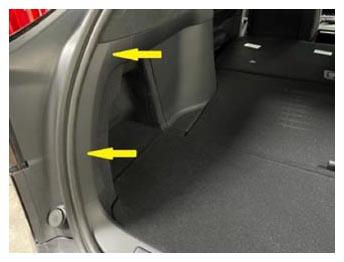

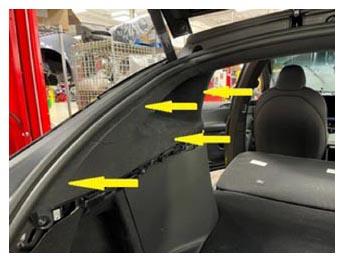

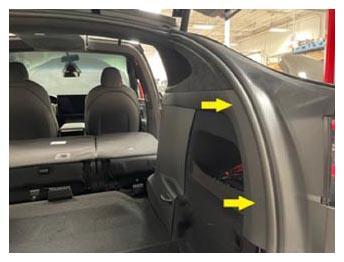

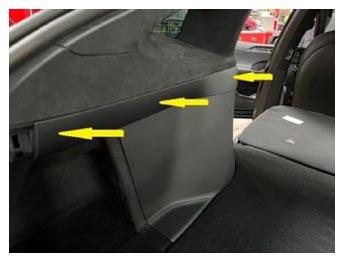

- Install LH upper C-pillar trim.
NOTE:
6x clips, 1x datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

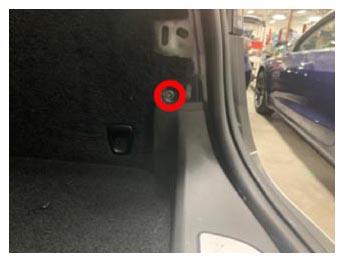

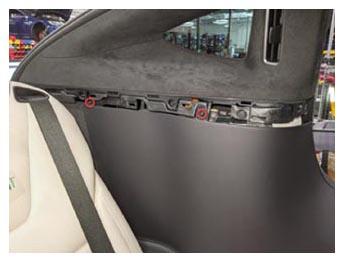

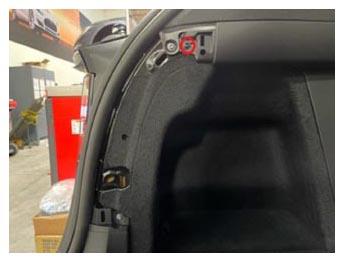

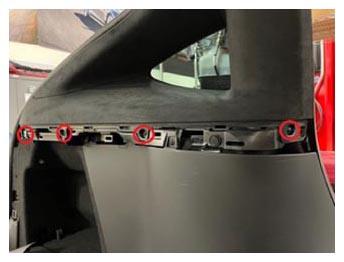

- Install fasteners securing LH upper C-pillar trim to bracket.
NOTE:
3x screws, T20, 2 N.m, 1x patch bolt, T25, 2 N.m, Install new patch bolt.
 Courtesy of TESLA, INC.
|

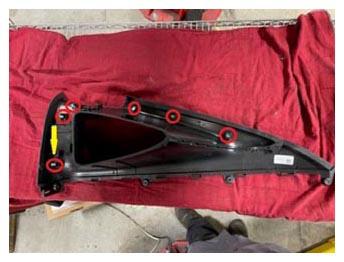

- Install LH mid C-pillar trim.
NOTE:
9x clips, 5x tabs, 1x screw, T20, 2 N.m.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

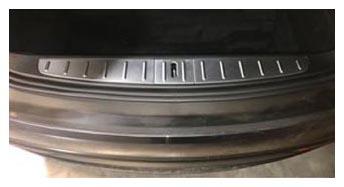

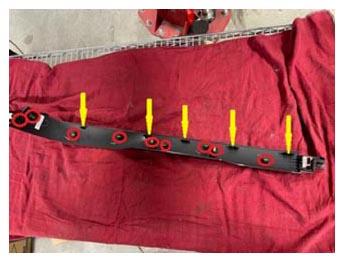

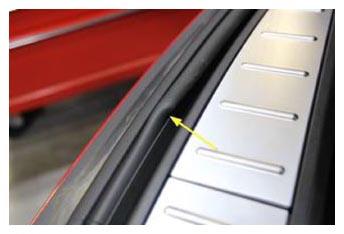

- Install rear trunk sill trim.
NOTE:
4x clips, 2x patch bolts, T25, 2.5 N.m, Make sure to seat liftgate seal properly, Install new patch bolts.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

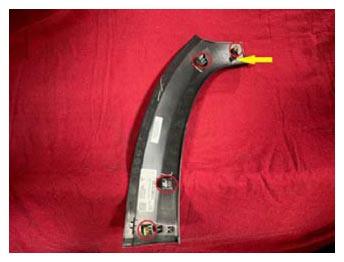

- Install RH trunk sill side trim.
NOTE:
4x clips, 1x datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

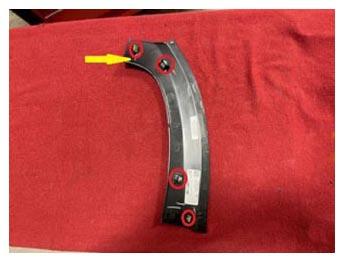

- Install LH trunk sill side trim.
NOTE:
4x clips, 1x datum.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install trunk gap hider.
 Courtesy of TESLA, INC.
|

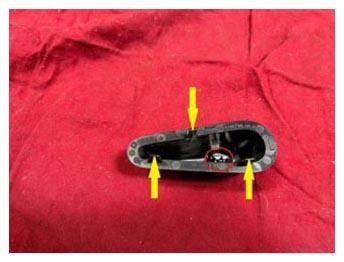

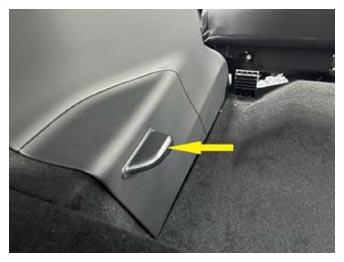

- Install LH trunk side mini nub.
NOTE:
1x clip, 3x tabs.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

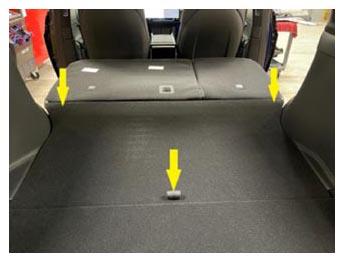

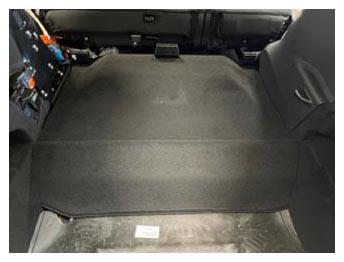

- Install flat trunk load floor.
 Courtesy of TESLA, INC.
|

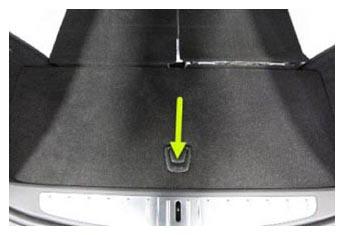

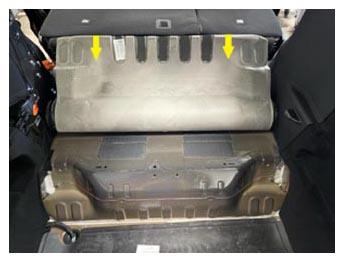

- Install trunk rear load floor.
 Courtesy of TESLA, INC.
|

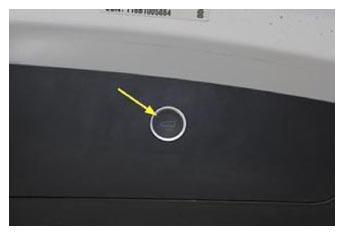

- Close liftgate.
 Courtesy of TESLA, INC.
|

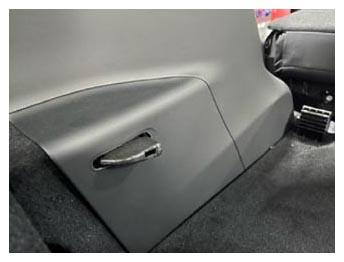

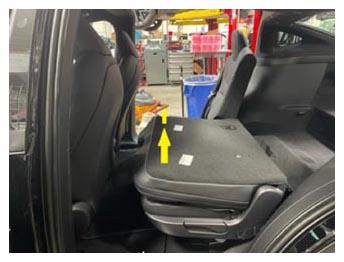

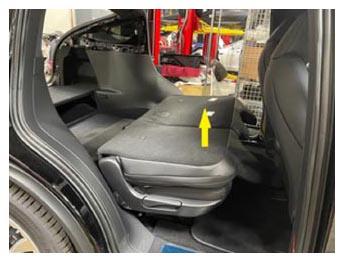

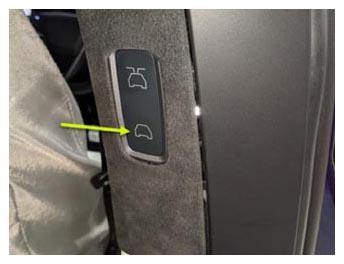

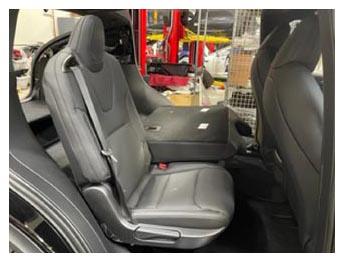

- Fold 2nd row 40 seat into vertical position.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Close RH falcon wing door.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

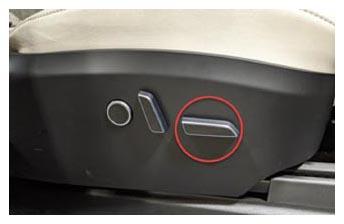

- Move RH front seat to original position.
 Courtesy of TESLA, INC.
|
- Close RH front door.

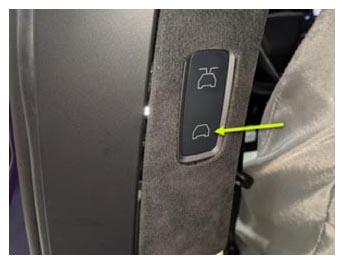

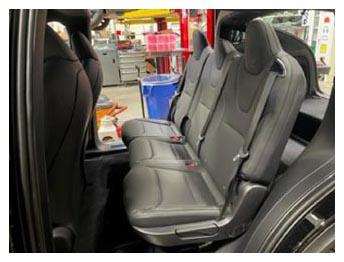

- Fold 2nd row 60 seat into vertical position.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

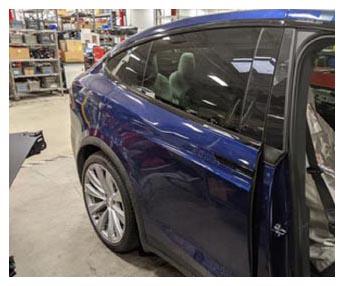

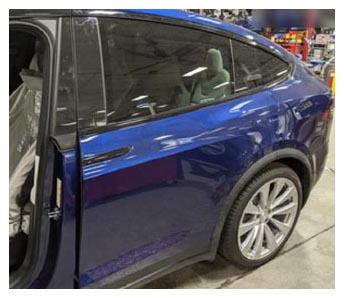

- Close LH falcon door.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

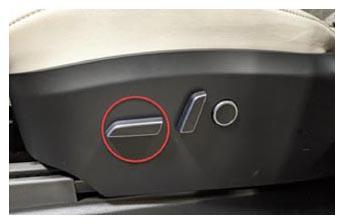

- Move LH front seat to original position.
 Courtesy of TESLA, INC.
|
