Tie Down - Rear Trunk - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.

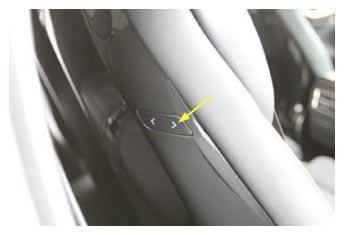

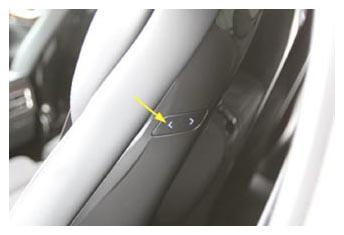

  4. Move the LH and RH monopost seats forward.
    G15396834Courtesy of TESLA, INC.
    G15396835Courtesy of TESLA, INC.
  5. Open the liftgate.
  6. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .

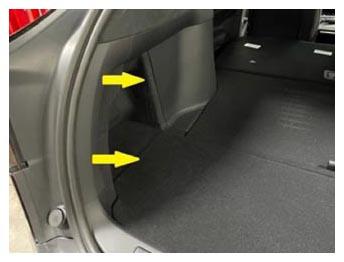

  7. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    G15396836Courtesy of TESLA, INC.
    G15396837Courtesy of TESLA, INC.

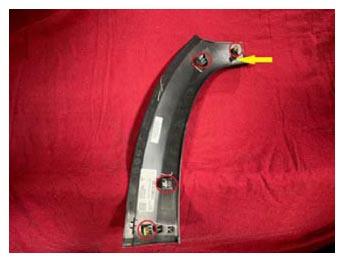

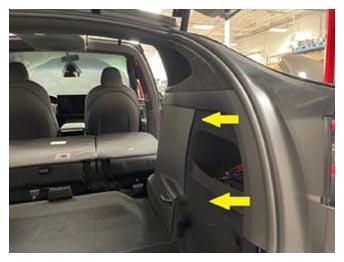

  8. Release the clips (x4) that attach the RH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    G15396838Courtesy of TESLA, INC.
    G15396839Courtesy of TESLA, INC.
  9. Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  10. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  11. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  12. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  13. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

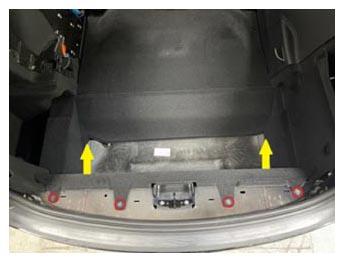

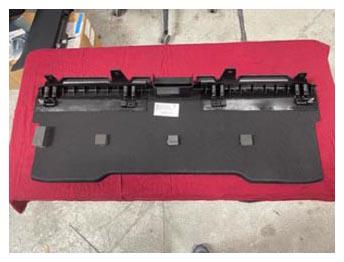

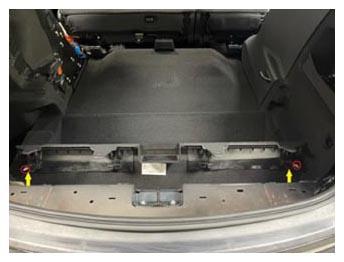

  14. Release the clips (x2) and push clips (x4) that attach the rear wall load support to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
    G15396840Courtesy of TESLA, INC.
    G15396841Courtesy of TESLA, INC.
    G15396842Courtesy of TESLA, INC.
  15. Remove the LH rear trunk crush can bracket. See TRIM - CRUSH CAN - REAR TRUNK - LH (REMOVE AND REPLACE) .

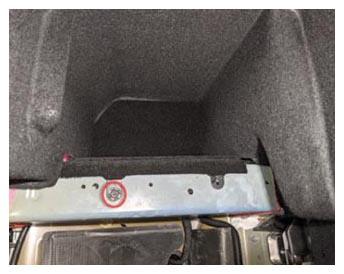

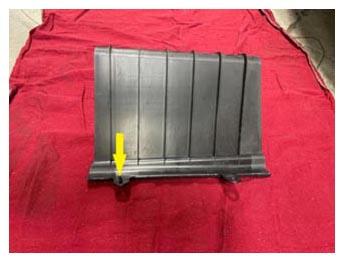

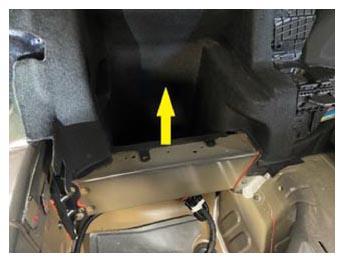

  16. Release the push clip that attaches the LH soft trim pocket bracket to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    G15396843Courtesy of TESLA, INC.
    G15396844Courtesy of TESLA, INC.
    G15396845Courtesy of TESLA, INC.

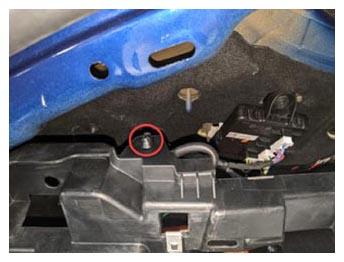

  17. Release the fir tree clip that attaches the charge port manual cable release to the LH mid C-pillar zone bracket.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    G15396846Courtesy of TESLA, INC.
  18. Remove the LH mid C-pillar zone bracket. See BRACKET - ZONE - C-PILLAR - MID - LH (5 SEAT) (REMOVE AND REPLACE) .

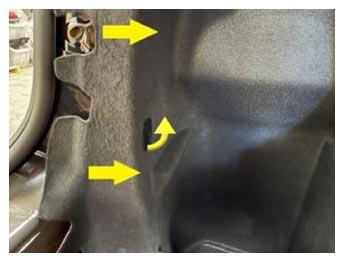

  19. Release the LH rear trunk tie down ring that attaches the side trim carpet to the tie down.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    • Pocket screwdriver
    G15396847Courtesy of TESLA, INC.
  20. Remove the LH trunk side trim carpet. See CARPET - TRIM - TRUNK - LH (REMOVE AND REPLACE) .

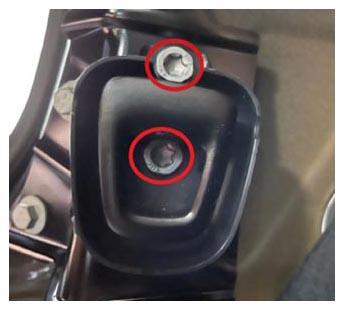

  21. Remove the bolts (x2) that secure the LH rear trunk tie down to the vehicle, and then remove the tie down from the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T45 socket
    G15396848Courtesy of TESLA, INC.
    G15396849Courtesy of TESLA, INC.
