Garnish - Rear Trunk - Side - LH - Remove And Replace: Remove

  1. Open the liftgate.
  2. Release the clips (x4) that attach the LH trunk sill side trim to the body, and then remove the side trim.

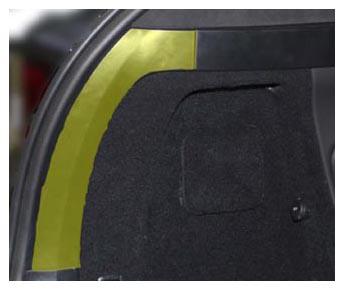

    G15396831Courtesy of TESLA, INC.
