Carpet - Rear Trunk (7 Seat) - Remove And Replace: Remove

  1. Open the liftgate.
  2. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  3. Remove the trunk tub floor insulator.

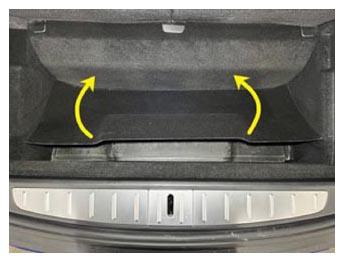

    G15396824Courtesy of TESLA, INC.
    G15396825Courtesy of TESLA, INC.
  4. Remove the rear trunk carpet.

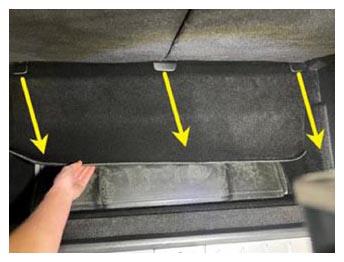

    G15396826Courtesy of TESLA, INC.
    G15396827Courtesy of TESLA, INC.
