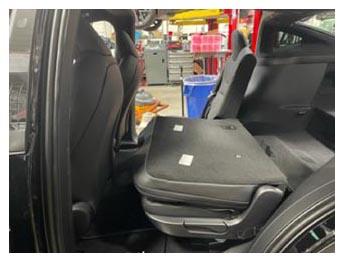

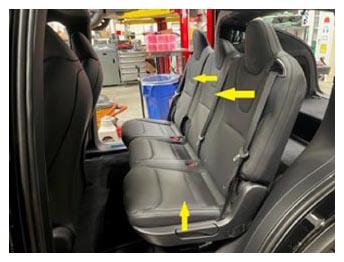

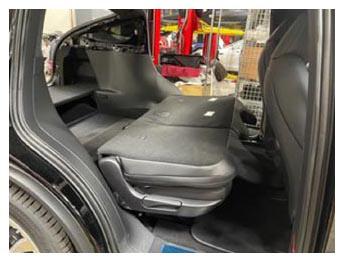

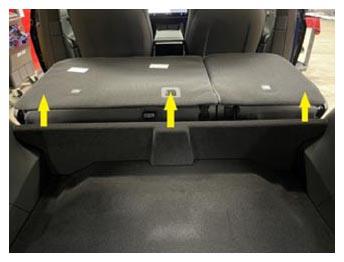

- Fold 2nd row 60 seat into down position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

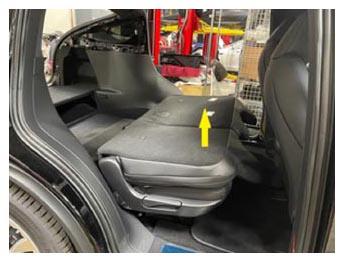

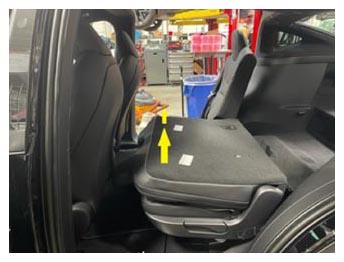

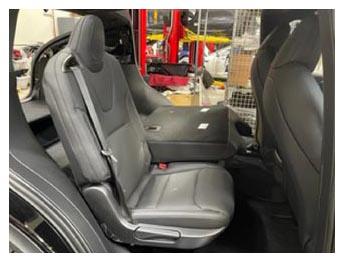

- Fold 2nd row 40 seat into down position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

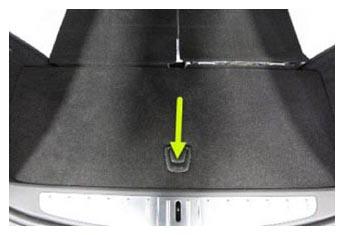

- Remove trunk rear load floor
 Courtesy of TESLA, INC.
|

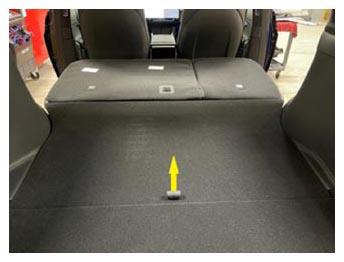

- Remove flat trunk load floor
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

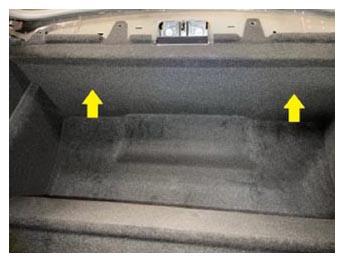

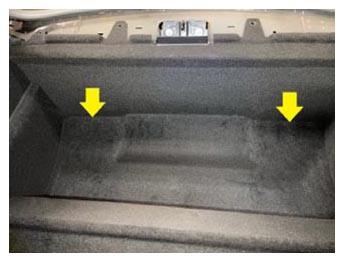

- Remove trunk tub floor
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

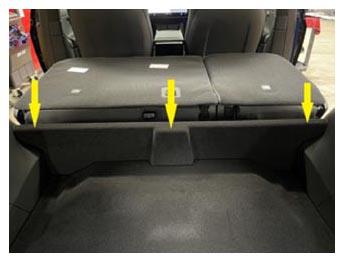

- Remove trunk gap hider
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

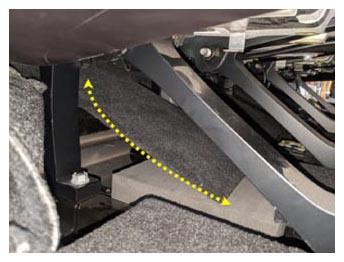

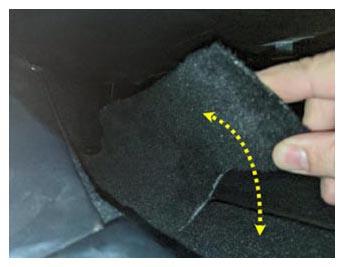

- Remove 2nd row rear floor board
NOTE:
2x clips, Peel up outside corners of the rear carpet to guide rear floor board up and out
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

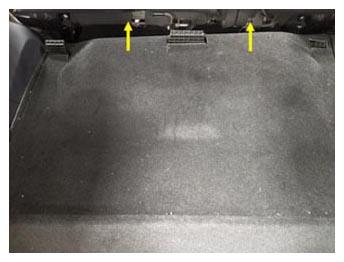

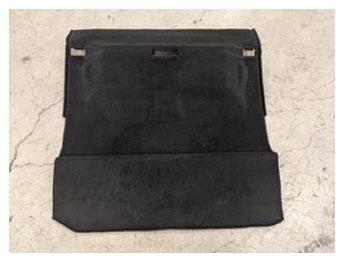

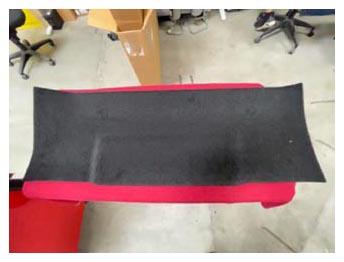

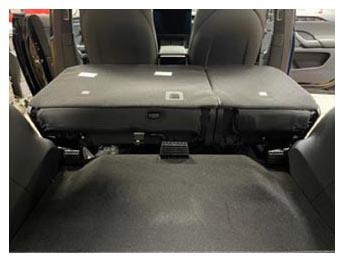

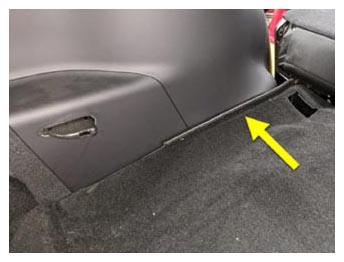

- Remove trunk carpet from vehicle
NOTE:
Starting from the front, lift carpet over harpoon brackets, release from underneath side trunk trim and remove through liftgate
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install trunk carpet into vehicle
NOTE:
Seat the rear edge first, then seat carpet over harpoon brackets and tuck under trunk side trim
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install 2nd row rear floor board
NOTE:
2x clips, Peel up outside corners of the rear carpet to guide rear floor board into position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install trunk gap hider
 Courtesy of TESLA, INC.
|
- Install trunk tub floor
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install flat trunk load floor
 Courtesy of TESLA, INC.
|
- Install trunk rear load floor
 Courtesy of TESLA, INC.
|

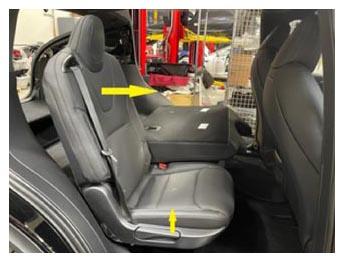

- Fold 2nd row 40 seat into vertical position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

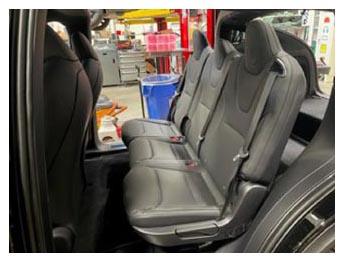

- Fold 2nd row 60 seat into vertical position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
