Bracket - Trim - Trunk - RH - Remove And Replace: Remove

  1. Open the RH doors and lower the RH front window.
  2. Move RH seats forward.
  3. Remove the RH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  4. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  5. Remove the trunk tub floor insulator.
    G15396681Courtesy of TESLA, INC.
  6. Remove the trunk carpet.

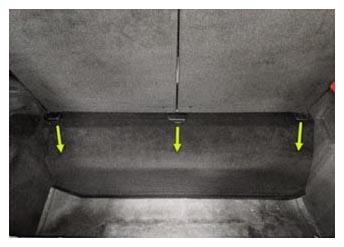

    G15396682Courtesy of TESLA, INC.
  7. Remove the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove And Replace) .
  8. Remove the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  9. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  10. Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  11. Remove the clips (x6) that attach the rear wall load support to the vehicle.

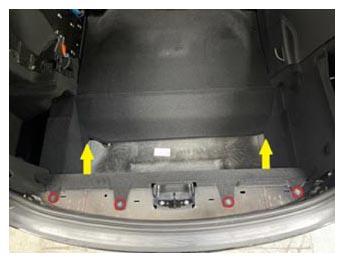

    G15396696Courtesy of TESLA, INC.

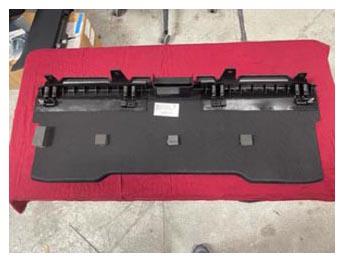

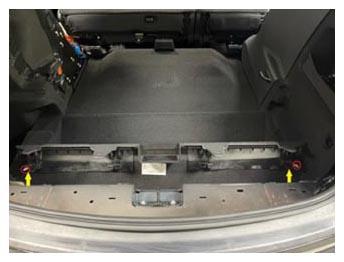

    G15396697Courtesy of TESLA, INC.
    G15396698Courtesy of TESLA, INC.
  12. Fold the RH 3rd row seat back to the down position.
  13. Remove the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  14. Release the RH trunk tie down from the RH side trim carpet.

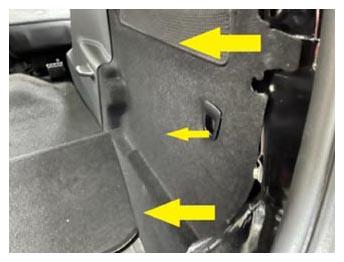

    G15396703Courtesy of TESLA, INC.

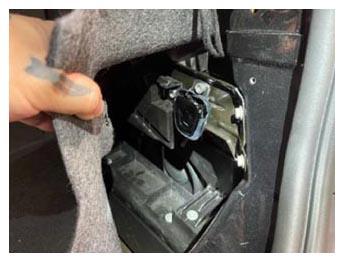

    G15396704Courtesy of TESLA, INC.
  15. Disconnect the connectors (x2), remove the push clips (x4) that attach the RH trunk side trim to the vehicle, and then remove the side trim from the vehicle.

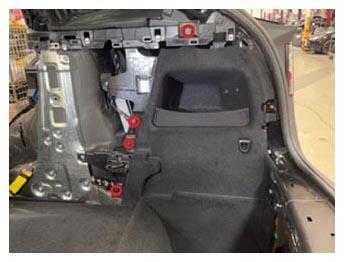

    G15396705Courtesy of TESLA, INC.

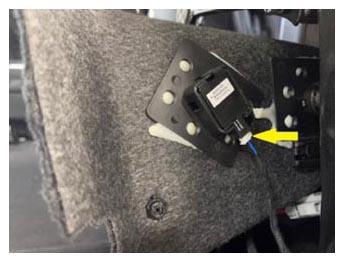

    G15396706Courtesy of TESLA, INC.

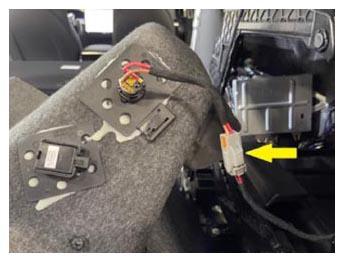

    G15396707Courtesy of TESLA, INC.

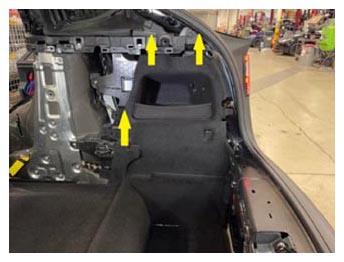

    G15396708Courtesy of TESLA, INC.

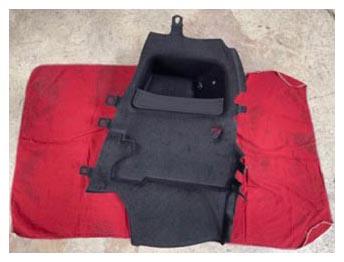

    G15396709Courtesy of TESLA, INC.
  16. Remove the bolts (x3), screw, and push clip that attach the RH trunk trim bracket to the vehicle, and then remove the bracket from the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    • T30 socket

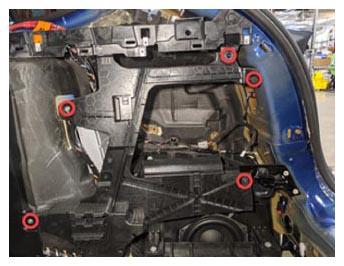

    G15396710Courtesy of TESLA, INC.
    G15396711Courtesy of TESLA, INC.
