Bracket - Trim - Trunk - RH - Remove And Replace: Install

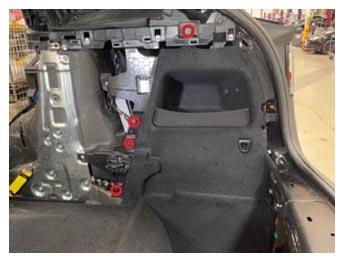

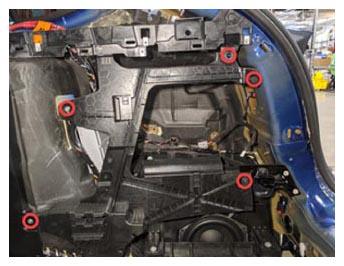

- Position the RH trunk trim bracket to the vehicle, and then install the bolts (x3), screw, and push clip that attach the bracket to the vehicle.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket
- T30 socket

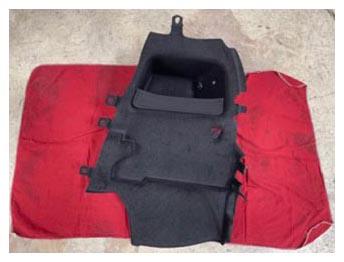

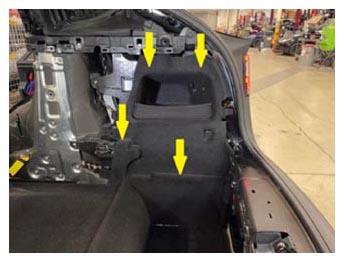

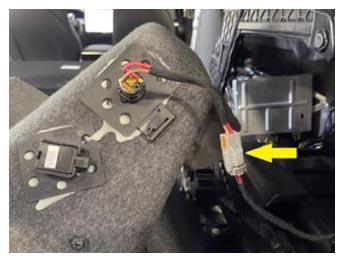

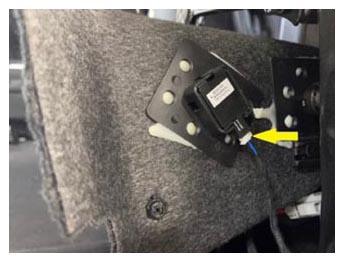

- Position the RH trunk side trim into the vehicle, connect the connectors (x2), and then install the push clips (x4) that attach the side trim to the vehicle.

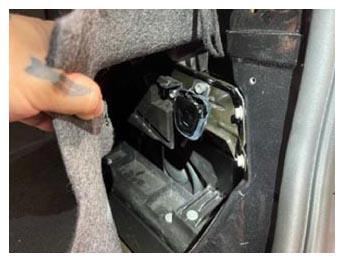

- Insert the RH trunk tie down into the RH trunk side trim carpet.
- Install the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Move the RH 3rd row seat back to the upright position.
- Install the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the RH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Install the RH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .

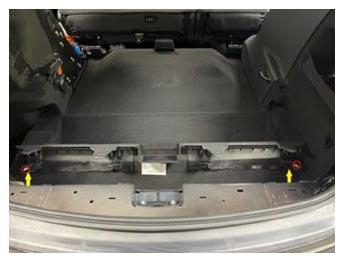

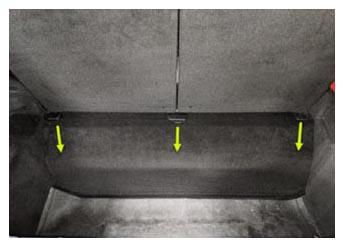

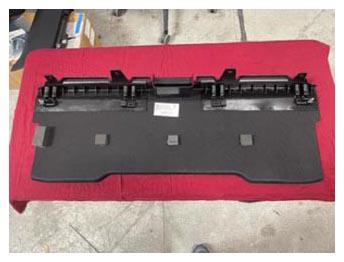

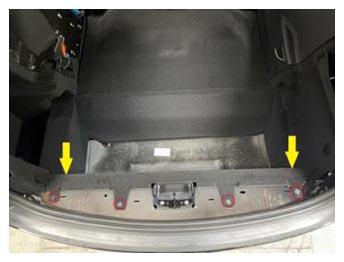

- Install the clips (x6) that attach the rear wall load floor support to the vehicle.
- Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
- Install the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove And Replace) .
- Install the trunk carpet.
- Install the trunk tub floor insulator.
- Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
- Move the RH seats to the original position.
- Close the RH doors and raise the RH front window.
