Bracket - Trim - Trunk - LH - Remove And Replace: Install

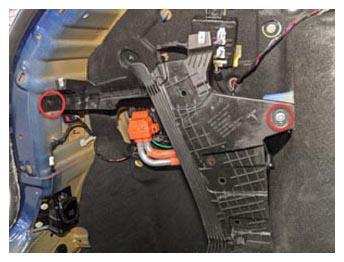

Position the LH trunk trim bracket into the vehicle, and then install the bolts (x2) and push clip that attach the bracket to the vehicle.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T30 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

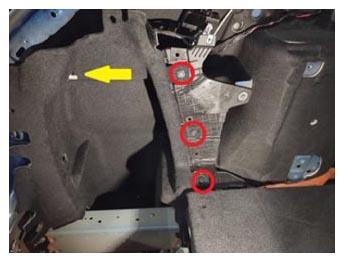

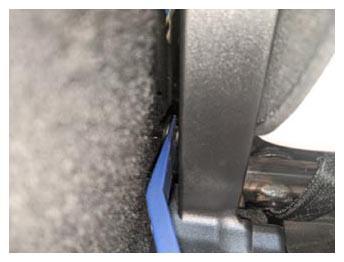

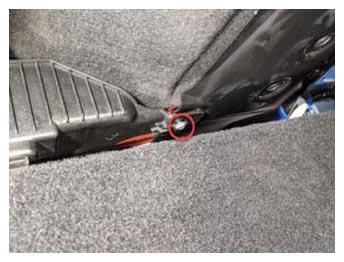

Position the LH trunk side trim carpet into the vehicle, connect the connector, and then install the push clips (x4) that attach the carpet to the vehicle.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH mid C-pillar zone bracket. See Bracket - Zone - C-Pillar - Mid - LH (6/7 Seat) (Remove And Replace) .
