Bracket - Tie Down - Rear Trunk - RH - Remove And Replace: Remove
- Open the liftgate.
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE)
.

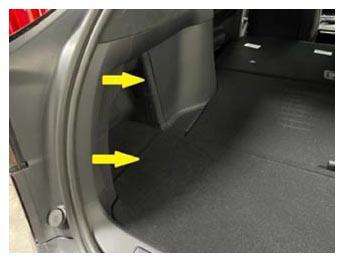

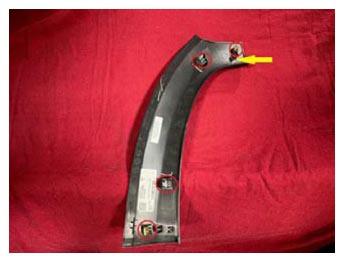

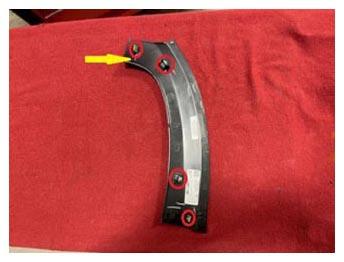

- Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

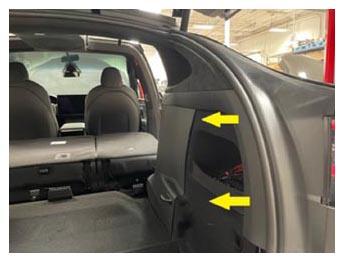

- Release the clips (x4) that attach the RH trunk sill side trim to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

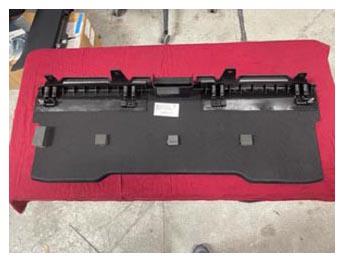

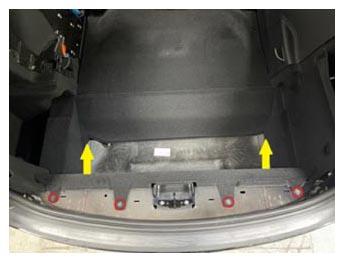

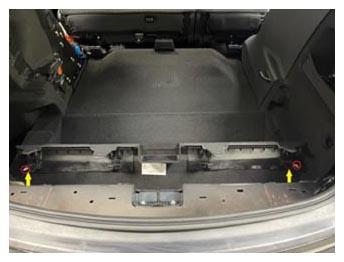

- Release the push clips (x4) and clips (x2) that attach the rear wall load support to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- Clip pry tool
- Plastic trim tool
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

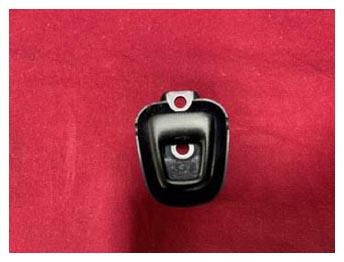

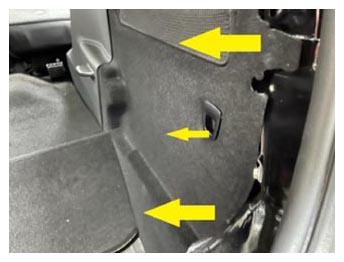

- Release the RH rear trunk tie down ring that attaches the side trim carpet to the tie down.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

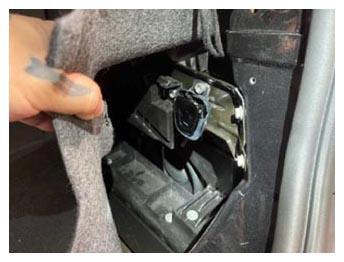

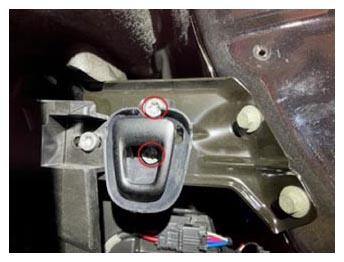

- Remove the bolts (x2) that secure the RH rear trunk tie down to the bracket.
NOTE:
Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Torx T45 socket
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

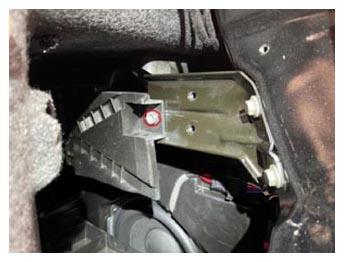

- Remove the bolt that secures the RH rear trunk side trim to the tie down bracket.
NOTE:
Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Torx T45 socket
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

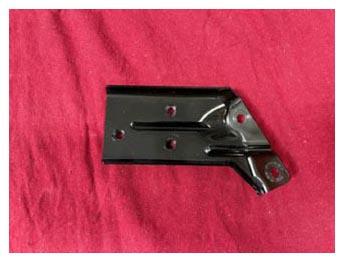

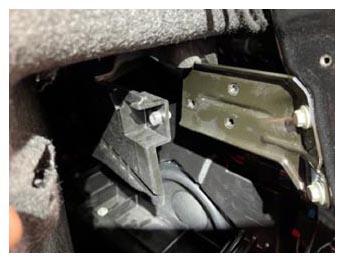

- Remove the bolts (x2) that secure the RH rear trunk tie down bracket to the vehicle, and then remove the bracket from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
