Bracket - Tie Down - Rear Trunk - LH - Remove And Replace: Install

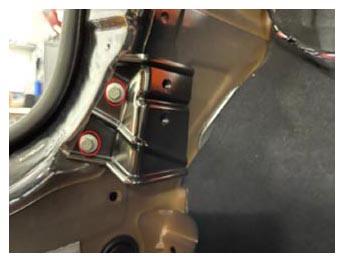

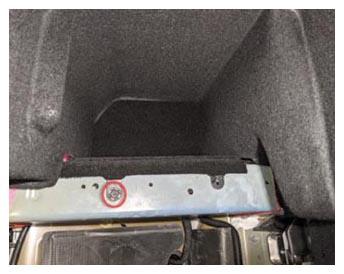

- Position the LH rear trunk tie down bracket on the vehicle, and then install the bolts (x2) that secure the bracket to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
 Courtesy of TESLA, INC.
|
- Install the LH rear trunk tie down. See TIE DOWN - REAR TRUNK - LH (REMOVE AND REPLACE) .
- Install the LH trunk side trim carpet. See CARPET - TRIM - TRUNK - LH (REMOVE AND REPLACE) .
- Install the LH rear trunk tie down ring that attaches the side trim carpet to the tie down.
- Install the LH mid C-pillar zone bracket. See BRACKET - ZONE - C-PILLAR - MID - LH (5 SEAT) (REMOVE AND REPLACE) .

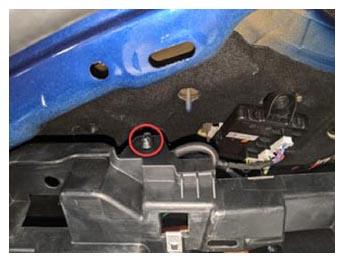

- Install the fir tree clip that attaches the charge port manual cable release to the LH mid C-pillar zone bracket.
 Courtesy of TESLA, INC.
|

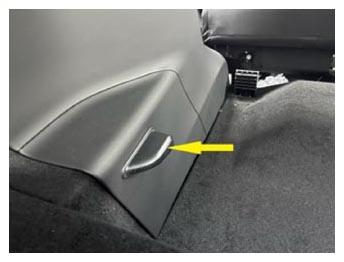

- Install the push clip that attaches the LH soft trim pocket bracket to the vehicle.
 Courtesy of TESLA, INC.
|
- Install the LH rear trunk crush can bracket. See TRIM - CRUSH CAN - REAR TRUNK - LH (REMOVE AND REPLACE)
.
- Fold the trunk carpet downward.

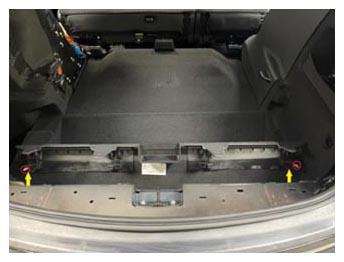

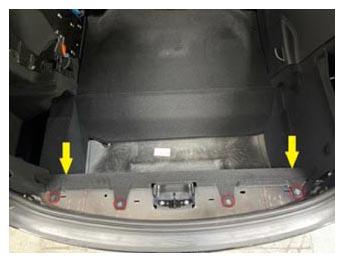

- Install the clips (x2) and push clips (x4) that attach the rear wall load support to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

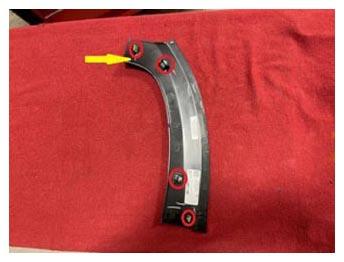

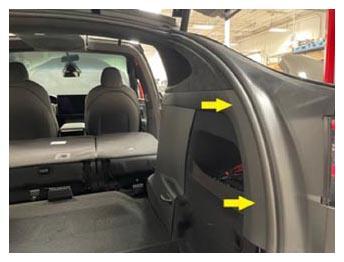

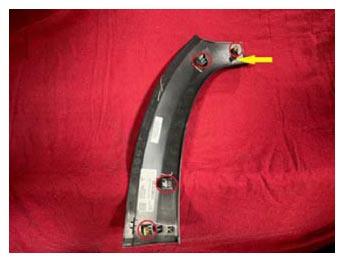

- Install the clips (x4) that attach the RH trunk sill side trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

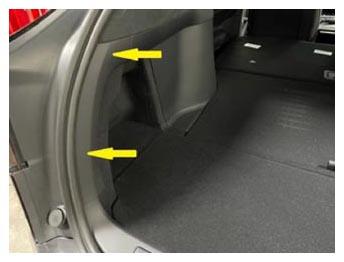

- Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

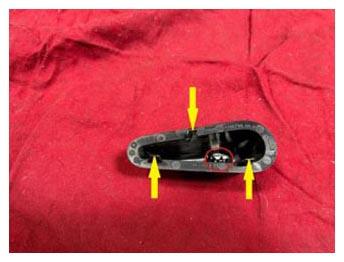

- Install the clip and tabs (x3) that attach the LH trunk side mini nub to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE)
.
- Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE)
.

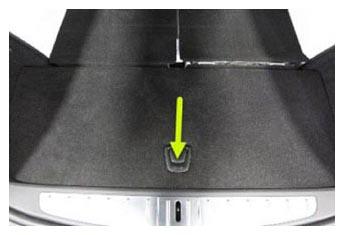

- Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE)
.
 Courtesy of TESLA, INC.
|
- Close the liftgate.
- Fold the LH and RH 2nd row bench seats upward.
- Close the LH and RH falcon wing doors.
- Move the driver and front passenger seats to original position.
- Raise the LH and RH front windows.
- Close the LH and RH front doors.
