Coat Hook - Rear - LH - Remove And Replace: Remove

Open the LH and RH front doors.
Lower the LH and RH front windows.
Open the LH and RH falcon wing doors.
Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
Open the liftgate.
Fold the LH 3rd row seat downwards.

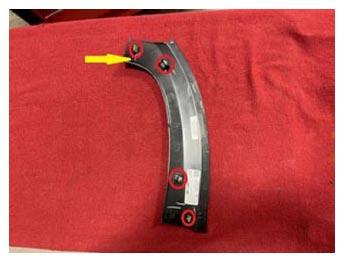

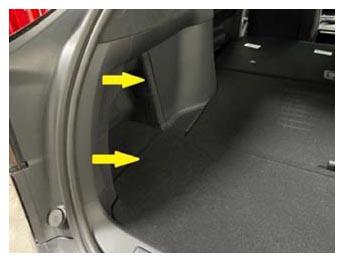

Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- Plastic trim tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

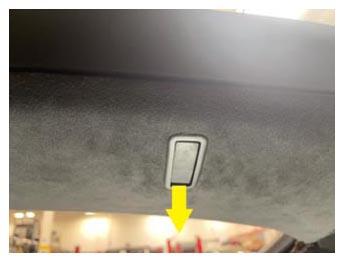

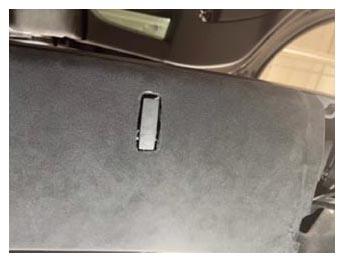

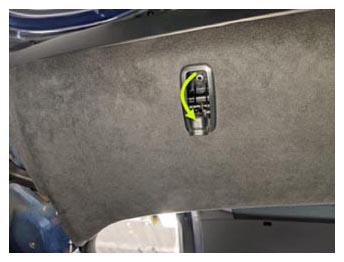

Open the LH and RH side rear coat hooks.
NOTE: Press the coat hooks inward, and then release to open.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

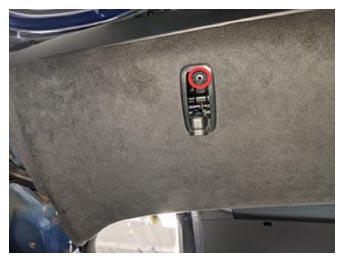

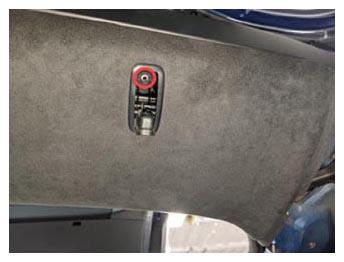

Remove the screws (x2) that attach the LH and RH rear coat hooks to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 2 in extension
- Ratchet/torque wrench
- Torx T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

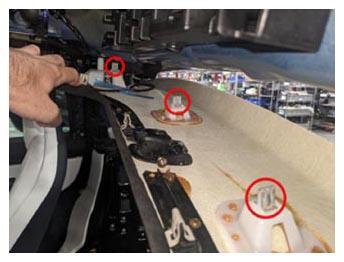

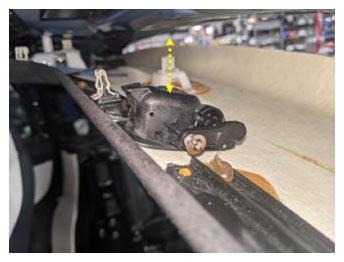

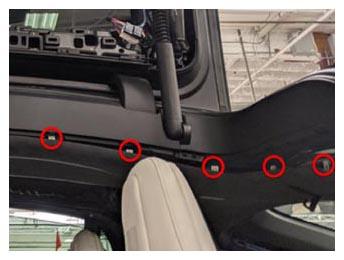

Partially release the clips (x8) that attach the LH headliner to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- Clip pry tool
- Plastic trim tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

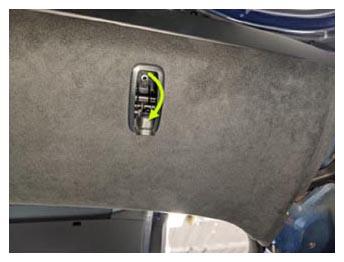

Remove the LH rear coat hook bezel that attaches the hook to the headliner, and then remove the hook from the vehicle.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
