Wheel Arch Liner - Rear - LH - Remove And Replace: Install

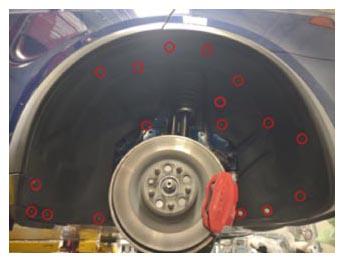

  1. Install the LH rear wheel arch liner into the LH rear wheel arch, and then install the bolts (x2), and fasten the push clips (x11) and fan clips (x4) that attach the wheel arch liner to the body.

    5 N.m (3.7 ft-lbs)

    G15393374Courtesy of TESLA, INC.
  2. Install the LH rear wheel. See Wheel (Remove and Install) .
  3. Remove the vehicle from the 2-post lift. See Raise Vehicle - 2 Post Lift .
