Underhood Apron - LH - Remove And Replace: Install

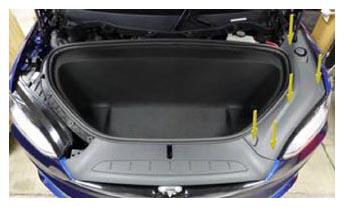

  1. Install the LH underhood apron to the body, and then work from the front of the vehicle to the hinge to fasten the clips (x11) that attach the apron to the body.
    G15394215Courtesy of TESLA, INC.
  2. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
