Plaid Graphic Badge - Remove And Replace: Remove

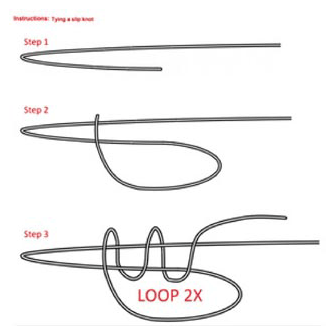

Cut the badge removal kit wire, and then tie slip knots onto both handles as required.
Tip: Use of the following tool(s) is recommended:
- Badge removal kit - 1453028-00-A
- Scissors
- Tape measure metric/inch
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

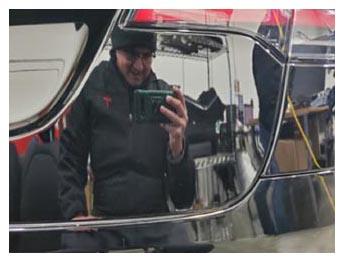

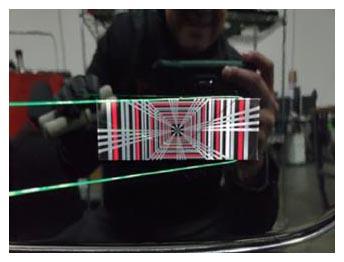

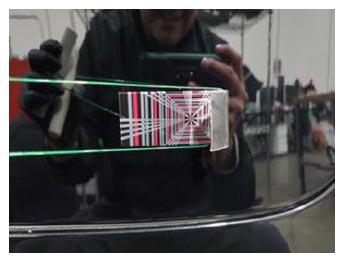

Feed the wire back and forth to separate the plaid graphic badge from the liftgate surface, and then remove the badge from the vehicle.
NOTE: Bend the badge during removal to prevent adhesive from reattaching.

Tip: Use of the following tool(s) is recommended:
- Badge removal kit - 1453028-00-A
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

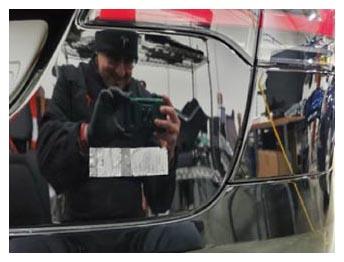

Use IPA wipes to remove old adhesive residue from the liftgate surface area. Allow 1 minute dry time.
Tip: Use of the following tool(s) is recommended:
- IPA wipes
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
