Side Shield - Inboard - Driver Seat - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat rearwards.
  3. Open the RH falcon wing door.
  4. Carefully release the clips (x7) that attach the driver seat inboard side shield to the seat assembly.

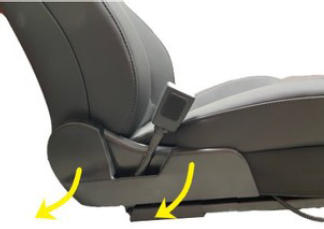

    G15404996Courtesy of TESLA, INC.
    G15404997Courtesy of TESLA, INC.

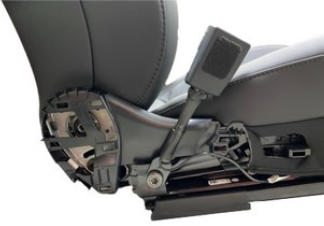

    G15404998Courtesy of TESLA, INC.
