Carrier - LH - Side Shield - Outboard - Front Seat - Remove And Replace: Remove
- Remove the driver seat outboard side shield assembly from the driver seat. See SIDE SHIELD - OUTBOARD - DRIVER SEAT (REMOVE AND REPLACE) .NOTE: It is not necessary to remove the back rest and cushion adjust switch from the trim assembly after removing the trim from the seat.

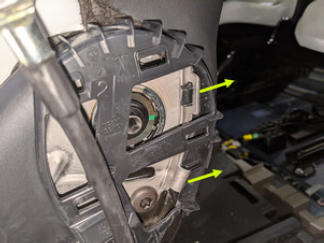

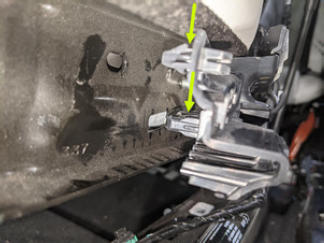

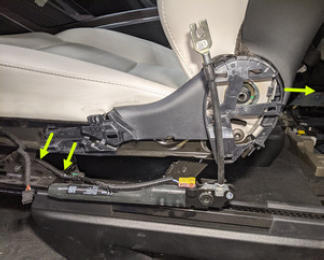

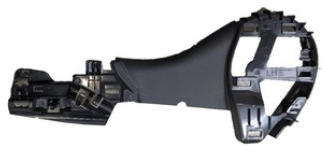

- Release the clips (x2) and tabs (x2) that attach the front seat side shield LH carrier to the seat assembly, and then remove the carrier from the vehicle.

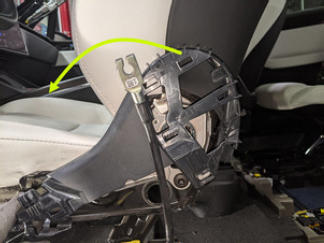

Tip: Release the front clips first, and then clear the rear tabs and rotate the trim away from the seat frame.
