Cover - Bracket - 3rd Row - Center - Remove And Replace: Remove

  1. Open the liftgate.
  2. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  3. Remove the trunk tub floor insulator.
    G15405279Courtesy of TESLA, INC.
  4. Remove the trunk carpet.

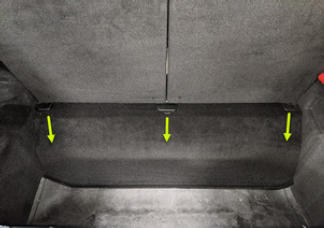

    G15405280Courtesy of TESLA, INC.
  5. Fold the LH and RH 3rd row seat backs to the down position.
  6. Release the clip that attaches the center 3rd row bracket cover to the seat assembly, and then remove the cover from the vehicle.
    NOTE: Pull the cover outward to release it.

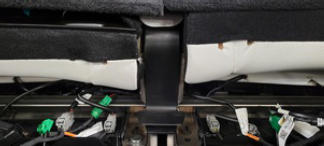

    G15405281Courtesy of TESLA, INC.

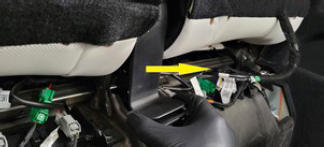

    G15405282Courtesy of TESLA, INC.

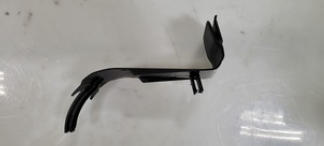

    G15405283Courtesy of TESLA, INC.
