Foam - Bumper Beam - Front - Remove And Replace: Remove

  1. Remove the front fascia assembly. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .

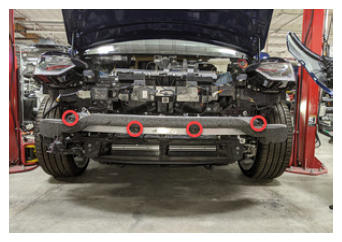

  2. Release the fir tree clips (x4) that attach the front bumper beam foam to the front bumper beam, and then remove the foam from the vehicle.
    G15389884Courtesy of TESLA, INC.
    G15389885Courtesy of TESLA, INC.
