Sensor - Parking Distance - Inner - Front - Remove And Replace: Remove

  1. On the vehicle touchscreen, touch Controls > Service > Jack Mode  to activate Jack Mode.
  2. Disconnect LV Power. See LV POWER (DISCONNECT AND CONNECT) .
  3. Remove the front fascia assembly from the vehicle. See Fascia Assembly - Front (Remove and Install) .
  4. Release the connector lock, and then disconnect the front inner parking distance sensor electrical connector.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

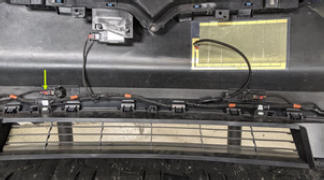

    G15437834Courtesy of TESLA, INC.

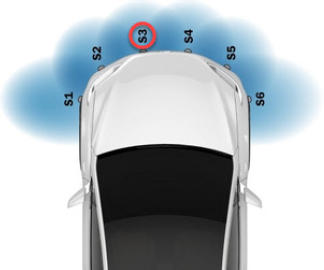

    G15437835Courtesy of TESLA, INC.
  5. Release the securing tabs (x2) that attach the front inner parking distance sensor to the front fascia assembly, and then remove the sensor from the assembly.

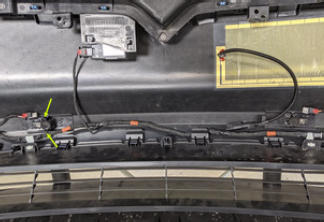

    G15437836Courtesy of TESLA, INC.

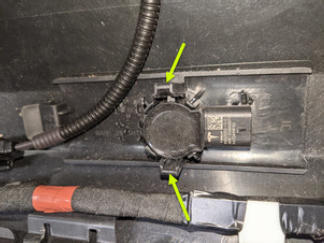

    G15437837Courtesy of TESLA, INC.
  6. Repeat steps  4 and  5 for the remaining front inner parking distance sensor.
