Taillight - RH - Remove And Replace: Remove

  1. Open the RH front door.
  2. Lower the RH front window.
  3. Move the RH front seat forward.
  4. Open the RH falcon wing door.
  5. Move the RH monopost seat forward.
  6. Remove the RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace) .
  7. Open the liftgate.
  8. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  9. Remove the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  10. Remove the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  11. Remove the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  12. Remove the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  13. Remove the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  14. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  15. Remove the rear wall rear trunk trim.
  16. Fold the RH 3rd row seat back downwards.
  17. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .

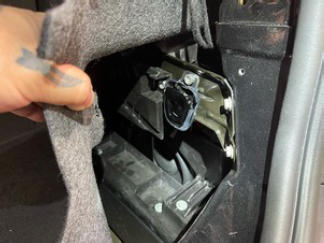

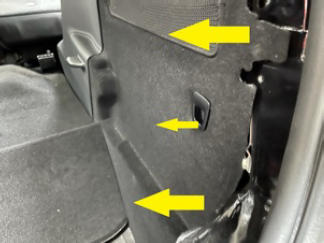

  18. Release the RH trunk tie down from the RH side trim carpet.
    G15438261Courtesy of TESLA, INC.
    G15438262Courtesy of TESLA, INC.
  19. Remove the RH trunk side trim. See Trim - Side - Trunk - RH (Remove and Replace) .
  20. Remove the RH trunk trim bracket. See Bracket - Trim - Trunk - RH (Remove and Replace) .

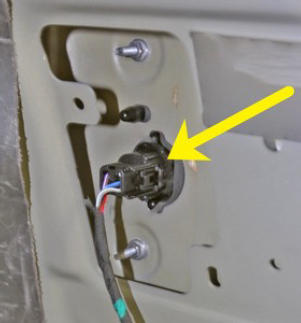

  21. Disconnect the RH taillight lamp connector.
    G15438263Courtesy of TESLA, INC.
  22. Remove the bolt, sealed washer, nut, and washer that attach that RH taillight to the body.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 8 mm 12-point deep socket
    • Flex head ratchet/flex head torque wrench
    G15438264Courtesy of TESLA, INC.

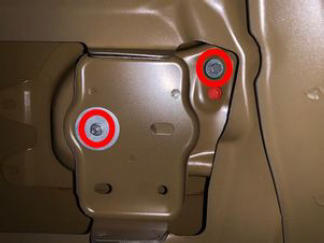

  23. Remove the nuts (x2) that attach the RH taillight to the body.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 8 mm 12-point deep socket
    • Flex head ratchet/flex head torque wrench
    G15438265Courtesy of TESLA, INC.

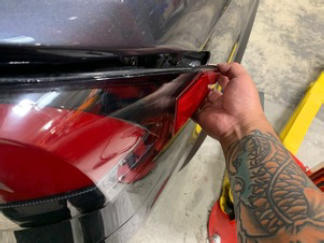

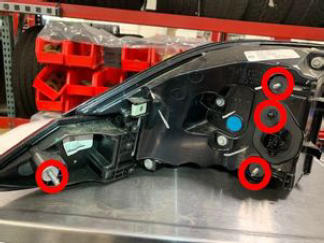

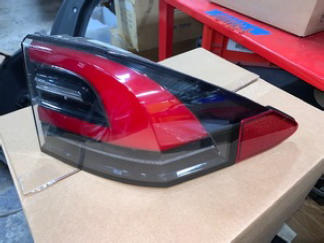

  24. Release the studs (x4) that attach the RH taillight to the body, and then remove the taillight from the vehicle.
    NOTE: Release the stud on the taillight fixed door first.
    G15438266Courtesy of TESLA, INC.
    G15438267Courtesy of TESLA, INC.
    G15438268Courtesy of TESLA, INC.

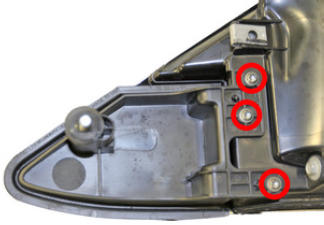

  25. Remove the bolts (x3) that attach the RH taillight fixed door to the taillight, and then remove the fixed door from the taillight.

    Tip: Use of the following tool(s) is recommended:

    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15438269Courtesy of TESLA, INC.
