Lamp - Reflex - Rear - LH - Remove And Replace: Install

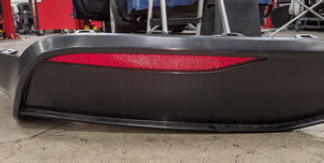

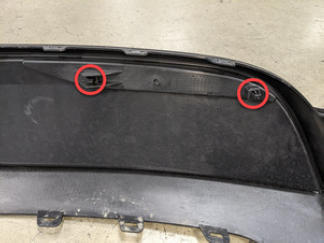

  1. Position the LH side reflex lamp into the lower rear fascia assembly, and then secure the clips (x2) that attach the lamp to the assembly.
    G15438110Courtesy of TESLA, INC.
    G15438111Courtesy of TESLA, INC.
  2. Install the rear fascia assembly onto the vehicle. See Fascia Assembly - Rear (Remove and Install) .
  3. Raise the front windows and close the LH front door.
