Trim - Middle - Instrument Panel - RH - Remove And Replace: Remove

  1. Open the front doors and lower the front windows.
  2. Remove the RH IP end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  4. Disconnect LV power. See LV Power (Disconnect and Connect) .
  5. Remove the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace)
    NOTE: It is not necessary to remove the cabin temperature sensor fan from the service panel.
  6. Remove the touchscreen assembly. See Touchscreen (HW3) - Remove And Replace .
    NOTE: It is not necessary to remove the display mechanism from the touchscreen after the assembly has been removed from the instrument panel.

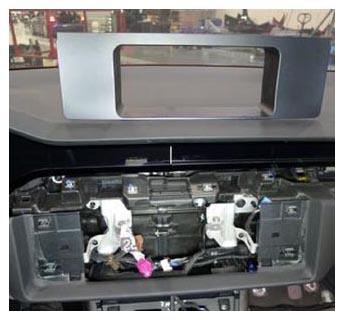

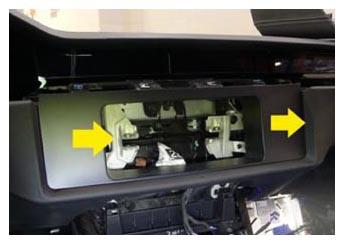

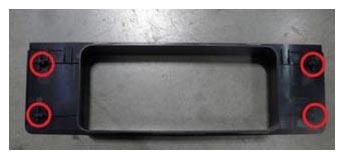

  7. Release the tabs (x4) that attach the instrument panel closeout panel to the instrument panel, and then remove the closeout panel from the instrument panel.
    G15394782Courtesy of TESLA, INC.
    G15394783Courtesy of TESLA, INC.
    G15394784Courtesy of TESLA, INC.

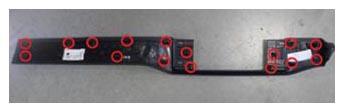

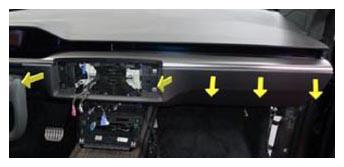

  8. Release the tabs (x14) that attach the RH instrument panel middle trim to the instrument panel, and then remove the trim from the instrument panel.
