Trim - Middle - Instrument Panel - RH - Remove And Replace: Install

  1. Position the RH instrument panel middle trim to the instrument panel, and then secure the tabs (x14) that attach the trim to the instrument panel.

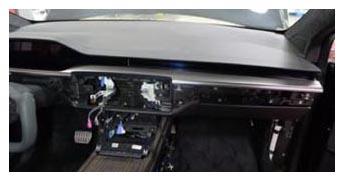

    G15394787Courtesy of TESLA, INC.

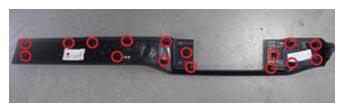

    G15394788Courtesy of TESLA, INC.

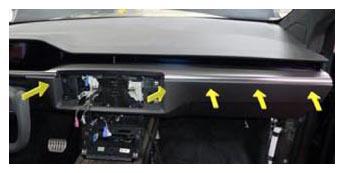

    G15394789Courtesy of TESLA, INC.
  2. Position the instrument panel closeout panel to the instrument panel, and then secure the tabs (x4) that attach the closeout panel to the instrument panel.

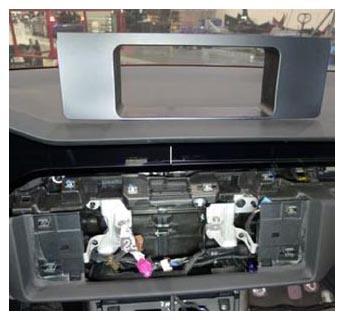

    G15394790Courtesy of TESLA, INC.

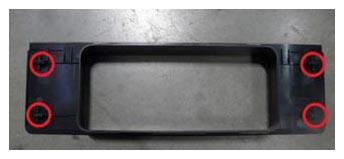

    G15394791Courtesy of TESLA, INC.

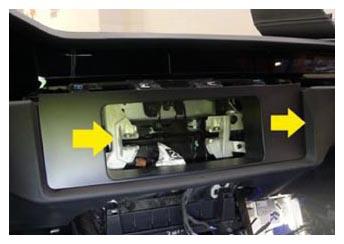

    G15394792Courtesy of TESLA, INC.
  3. Install the touchscreen assembly. See Touchscreen (Remove and Replace) .
  4. Install the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace)
  5. Install the RH IP end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  6. Connect LV power. See LV Power (Disconnect and Connect) .
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  8. Close hood
  9. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  10. Raise the front windows and close the front doors.
