Glove Box - Remove And Replace: Install

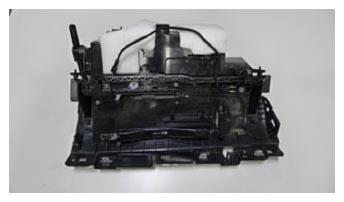

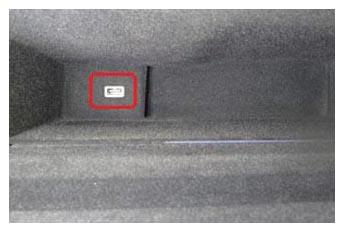

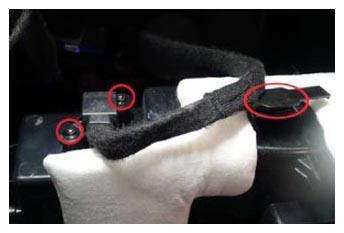

  1. Position the USB outlet into the glove box assembly, and then install the screws (x2) and secure the clip that attach the outlet to the glove box assembly.

    3 N.m (2.2 ft-lbs)

    NOTE: Make sure the USB socket is flush in the glove box.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G15394604Courtesy of TESLA, INC.
    G15394605Courtesy of TESLA, INC.
    G15394606Courtesy of TESLA, INC.

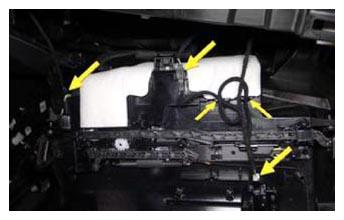

  2. Connect the glove box electrical connectors (x3), and then route the harness through the glove box datums.
    G15394607Courtesy of TESLA, INC.

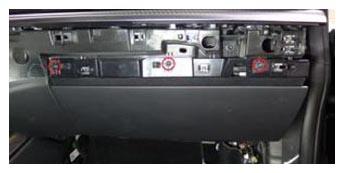

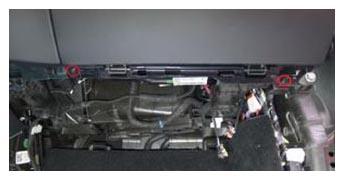

  3. Install the screws (x5) that attach the glove box to the vehicle.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    G15394608Courtesy of TESLA, INC.
    G15394609Courtesy of TESLA, INC.
  4. Install the front passenger knee airbag assembly. See Knee Airbag - Front Passenger (Remove and Replace) .
  5. Install the RH center console side carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace) .
  6. Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (REMOVE AND REPLACE)
  7. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  8. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  9. Install the RH IP end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  10. Install the RH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace) .
  11. Install the front passenger floor mat.
  12. Install the instrument panel RH middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - RH (REMOVE AND REPLACE) .

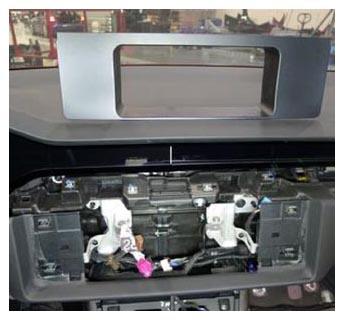

  13. Position the instrument panel closeout panel to the instrument panel, and then secure the tabs (x4) that attach the closeout panel to the instrument panel.

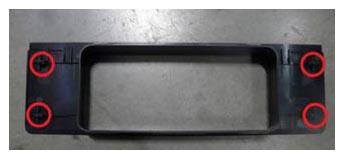

    G15394610Courtesy of TESLA, INC.
    G15394611Courtesy of TESLA, INC.

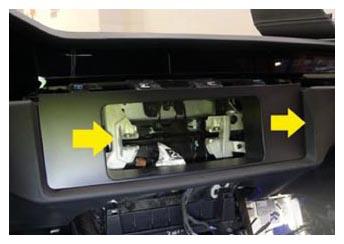

    G15394612Courtesy of TESLA, INC.
  14. Install the touchscreen assembly. See Touchscreen (Remove and Replace) .
  15. Install the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace)
  16. Connect LV power. See LV Power (Disconnect and Connect) .
  17. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  18. Move the front passenger seat to the original position.
  19. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  20. Raise the front windows and close the LH front door.
  21. Close LH front door
