End Cap - Instrument Panel - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Release the clips (x7) that attach the LH instrument panel end cap to the instrument panel, and then remove the end cap from the vehicle.
    NOTE: Ensure the clip at instrument carrier is released fully before removal.

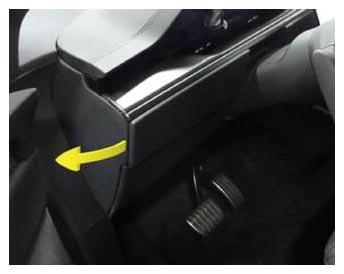

    G15394583Courtesy of TESLA, INC.

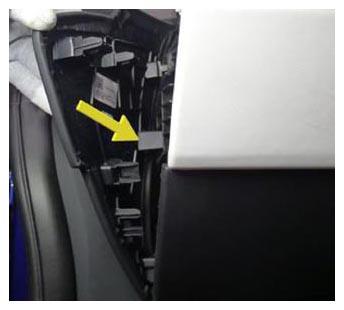

    G15394584Courtesy of TESLA, INC.

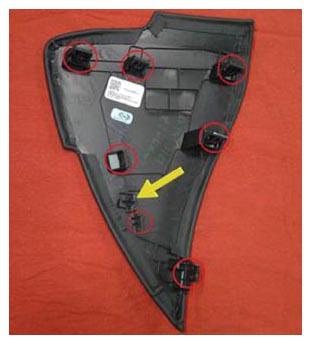

    G15394585Courtesy of TESLA, INC.
