Cross Car Beam - Remove And Replace: Install

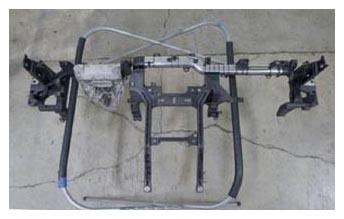

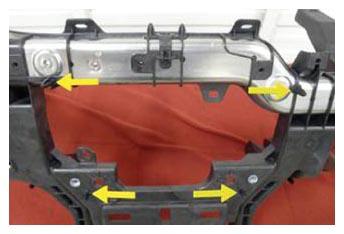

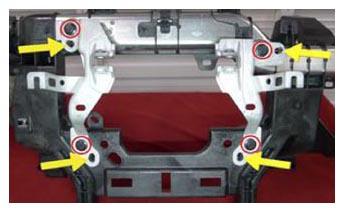

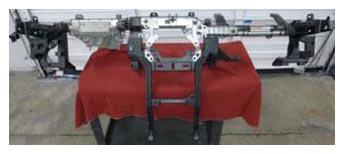

  1. Install the bolts (x4) that attach the touchscreen brackets to the new cross car beam.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15394480Courtesy of TESLA, INC.
    G15394481Courtesy of TESLA, INC.
    G15394482Courtesy of TESLA, INC.
    G15394483Courtesy of TESLA, INC.

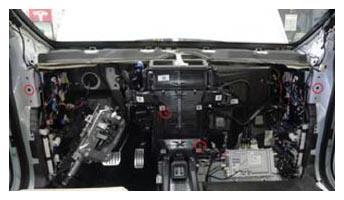

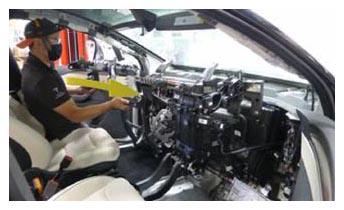

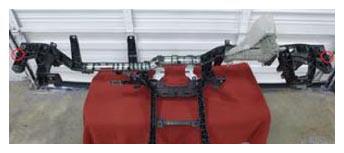

  2. With an assistant, install the cross car beam into the vehicle.
    NOTE: Datums (x4).
    NOTE: Avoid contact with seats and inner door panel.
    NOTE: Align the datums before fully engaging with the HVAC assembly.
    G15394484Courtesy of TESLA, INC.
    G15394485Courtesy of TESLA, INC.

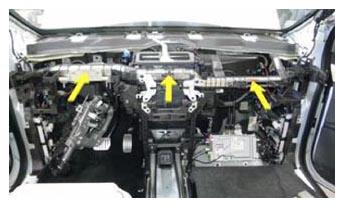

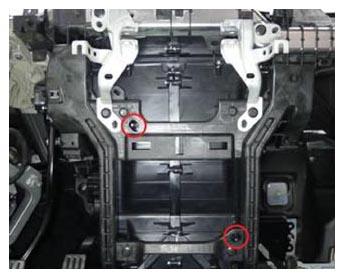

  3. Engage the cross car beam to the body and the HVAC assembly.
    NOTE: Datums (x4).
    G15394486Courtesy of TESLA, INC.
    G15394487Courtesy of TESLA, INC.
    G15394488Courtesy of TESLA, INC.

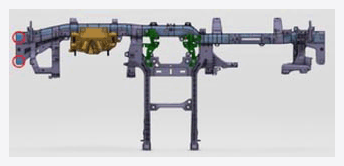

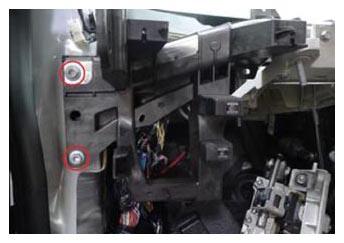

  4. Install the bolts (x2) that attach the LH side of the cross car beam.

    27 N.m (19.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15394489Courtesy of TESLA, INC.
    G15394490Courtesy of TESLA, INC.

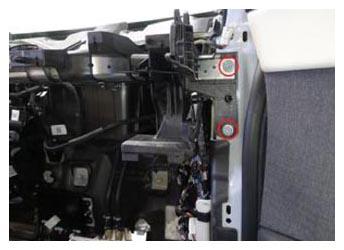

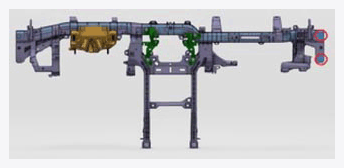

  5. Install the bolts (x2) that attach the RH side of the cross car beam.

    27 N.m (19.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15394491Courtesy of TESLA, INC.
    G15394492Courtesy of TESLA, INC.

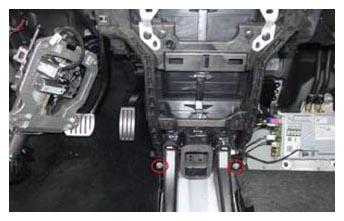

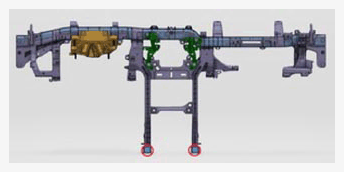

  6. Install the bolts (x2) that attach the cross car beam to the toeboard bracket.

    27 N.m (19.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15394493Courtesy of TESLA, INC.
    G15394494Courtesy of TESLA, INC.

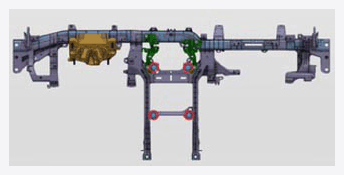

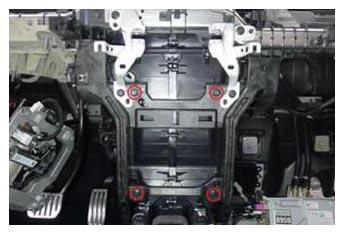

  7. Install the bolts (x4) that attach the cross car beam to the HVAC assembly.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15394495Courtesy of TESLA, INC.
    G15394496Courtesy of TESLA, INC.

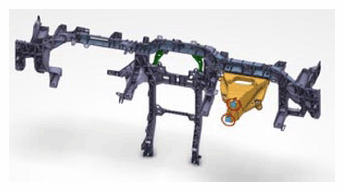

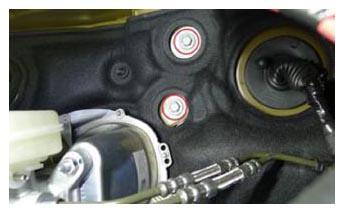

  8. Install the bolts (x2) that attach the upper steering column bracket instrument panel carrier at the bulkhead.

    27 N.m (19.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    G15394497Courtesy of TESLA, INC.
    G15394498Courtesy of TESLA, INC.

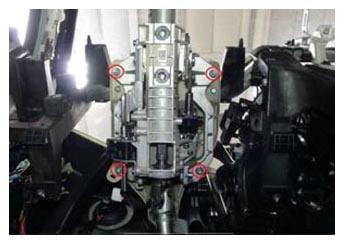

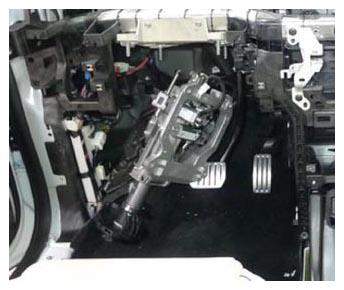

  9. Install the nuts (x4) that attach the steering column to the steering column bracket.

    15 N.m (11.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm deep socket
    G15394499Courtesy of TESLA, INC.
    G15394500Courtesy of TESLA, INC.

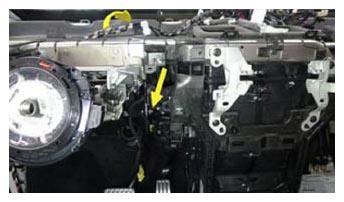

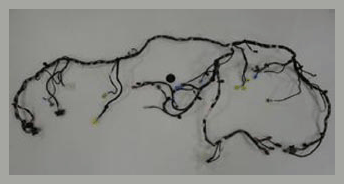

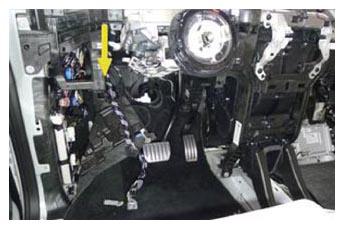

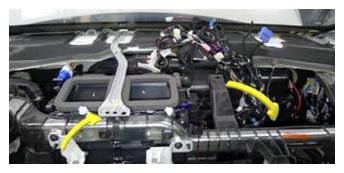

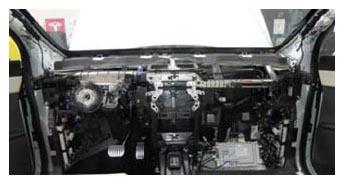

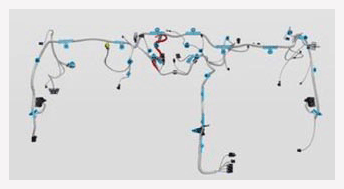

  10. Install the instrument panel harness into the vehicle.
    NOTE: Maneuver the RH side of the harness underneath the instrument panel cowl link down into passenger footwell, and then maneuver the LH side of the harness up and over the steering column down into the driver footwell.
    G15394501Courtesy of TESLA, INC.
    G15394502Courtesy of TESLA, INC.
    G15394503Courtesy of TESLA, INC.
    G15394504Courtesy of TESLA, INC.
    G15394505Courtesy of TESLA, INC.
    G15394506Courtesy of TESLA, INC.

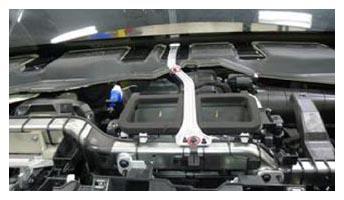

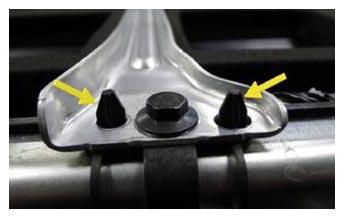

  11. Install the bolts (x2) that attach the instrument panel cowl link.

    6 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    NOTE: Datums (x2)
    G15394507Courtesy of TESLA, INC.
    G15394508Courtesy of TESLA, INC.

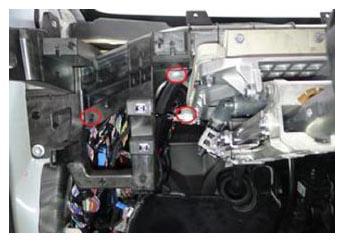

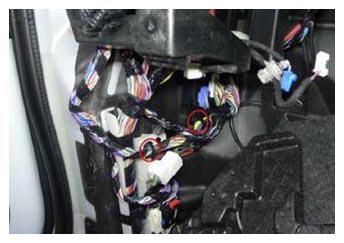

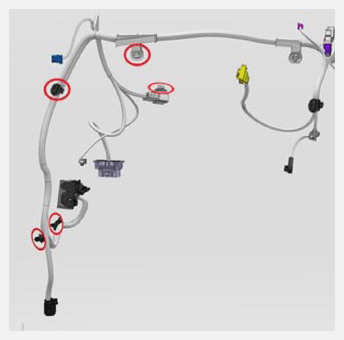

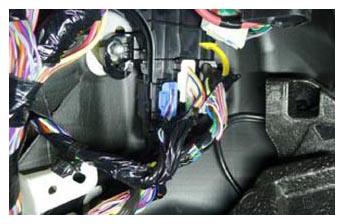

  12. Fasten the clips (x5) that attach the instrument panel harness to the J12 x035 Dash connector at the LH body controller, and then connect the electrical connector.
    G15394509Courtesy of TESLA, INC.
    G15394510Courtesy of TESLA, INC.
    G15394511Courtesy of TESLA, INC.
    G15394512Courtesy of TESLA, INC.

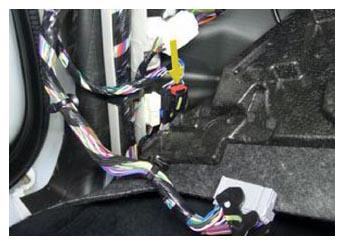

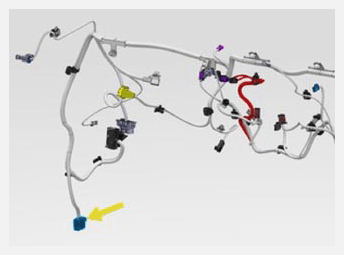

  13. Connect the instrument panel harness electrical connector x947F.
    NOTE: Secure the locking tab after installation.
    G15394513Courtesy of TESLA, INC.
    G15394514Courtesy of TESLA, INC.

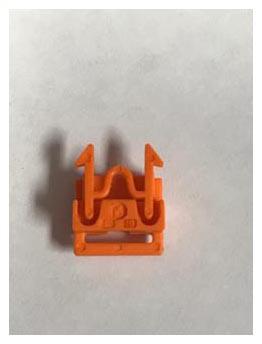

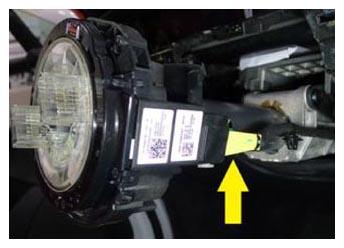

  14. Connect the steering column control module electrical connector.

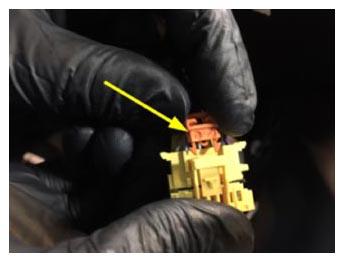

    NOTE: Install a new orange retaining clip to electrical connector, and then install the steering column control module connector. Perform a push-pull-push to make sure connector is seated properly.
    G15394515Courtesy of TESLA, INC.
    G15394516Courtesy of TESLA, INC.
    G15394517Courtesy of TESLA, INC.

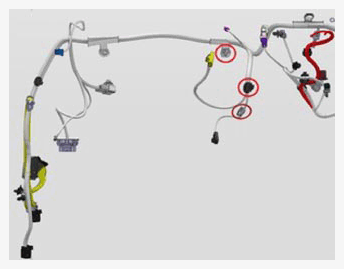

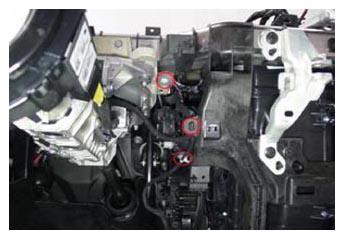

  15. Fasten the clips (x3) that attach the instrument panel harness to the LH center of the instrument panel carrier.
    G15394518Courtesy of TESLA, INC.
    G15394519Courtesy of TESLA, INC.

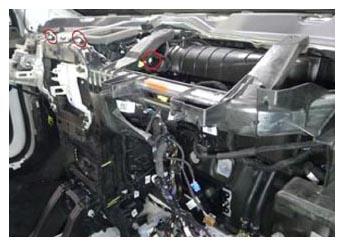

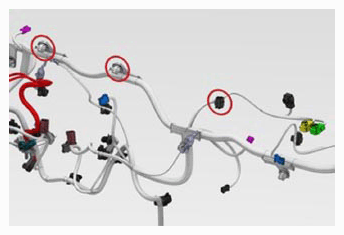

  16. Fasten the clips (x3) that attach the instrument panel harness at the upper center of the instrument panel carrier.
    G15394520Courtesy of TESLA, INC.
    G15394521Courtesy of TESLA, INC.

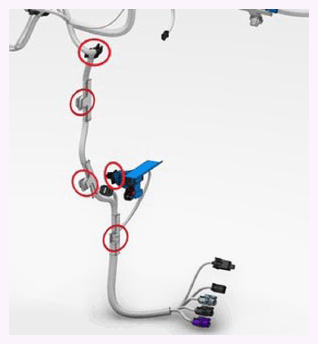

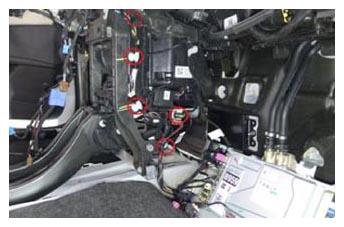

  17. Fasten the clips (x5) that attach the instrument panel harness to the lower center of the instrument panel carrier.
    G15394522Courtesy of TESLA, INC.
    G15394523Courtesy of TESLA, INC.

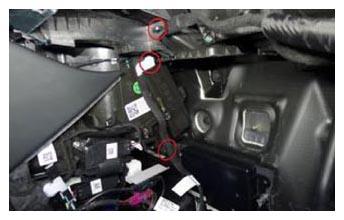

  18. Fasten the clips (x3) that attach the glove box USB cable to the instrument panel carrier.
    G15394524Courtesy of TESLA, INC.

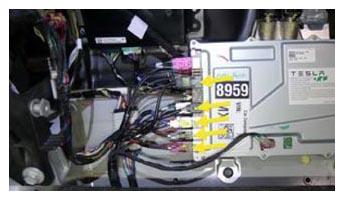

  19. Connect the instrument panel harness electrical connectors (x5) at the LH side of the car computer.
    G15394525Courtesy of TESLA, INC.
    G15394526Courtesy of TESLA, INC.

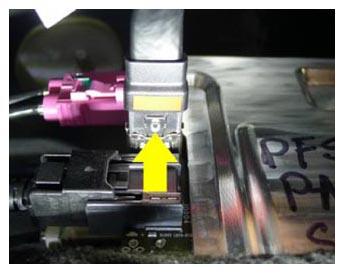

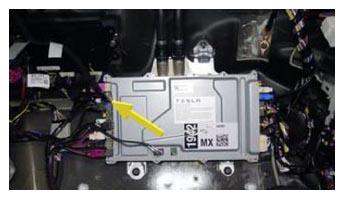

  20. Connect the car computer electrical connector.
    NOTE: Confirm the connector is locked into the socket.
    G15394527Courtesy of TESLA, INC.
    G15394528Courtesy of TESLA, INC.

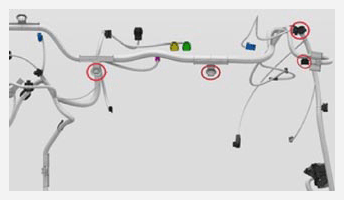

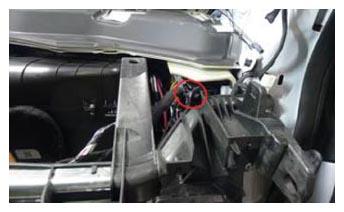

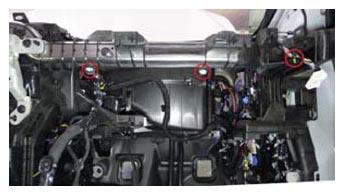

  21. Fasten the clips (x4) that attach the instrument panel harness to the RH side of the instrument panel carrier.
    G15394529Courtesy of TESLA, INC.
    G15394530Courtesy of TESLA, INC.
    G15394531Courtesy of TESLA, INC.

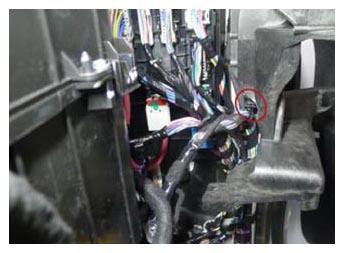

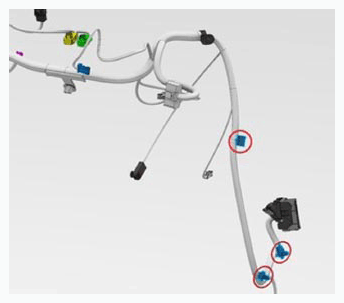

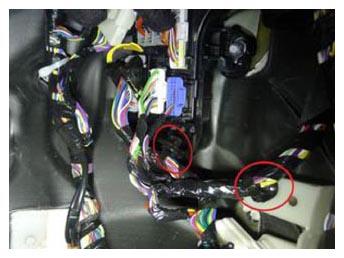

  22. Fasten the clips (x3) that attach the instrument panel harness to J12 x055 Dash connector at the RH body controller, and then connect the electrical connector.
    G15394532Courtesy of TESLA, INC.
    G15394533Courtesy of TESLA, INC.
    G15394534Courtesy of TESLA, INC.

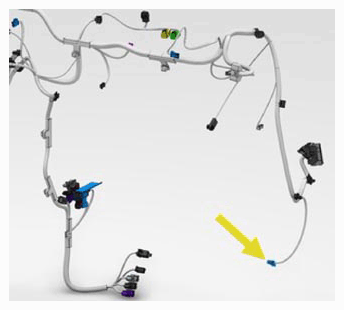

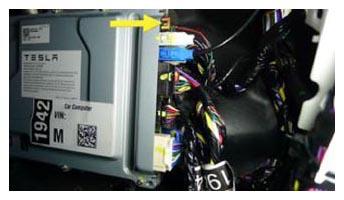

  23. Connect the instrument panel harness connector x873 at the top RH side of the car computer.
    G15394535Courtesy of TESLA, INC.
    G15394536Courtesy of TESLA, INC.

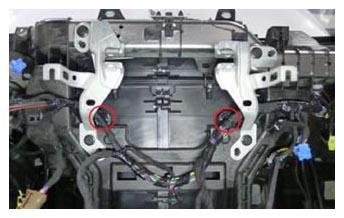

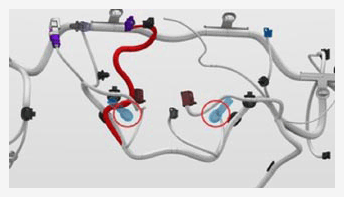

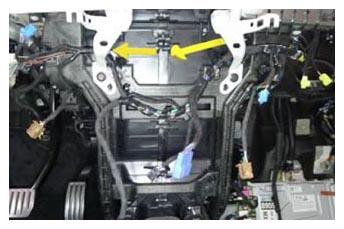

  24. Fasten the clips (x2) that attach the instrument panel harness to the center of the instrument panel carrier.
    NOTE: Maneuver the instrument panel harness behind both touchscreen brackets into position.
    G15394537Courtesy of TESLA, INC.
    G15394538Courtesy of TESLA, INC.
    G15394539Courtesy of TESLA, INC.

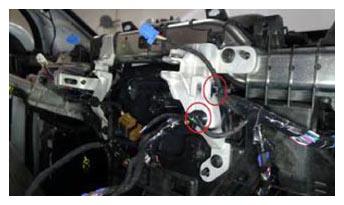

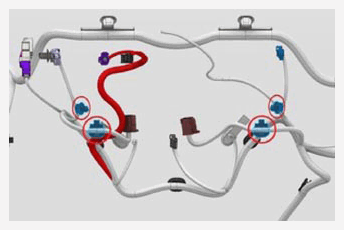

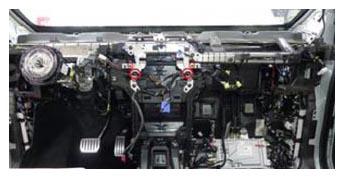

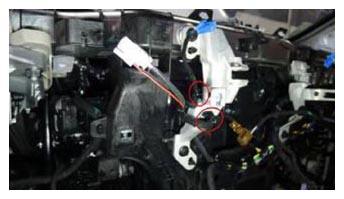

  25. Fasten the clips (x4) that attach the instrument panel harness at the LH and RH touchscreen brackets.
    G15394540Courtesy of TESLA, INC.
    G15394541Courtesy of TESLA, INC.
    G15394542Courtesy of TESLA, INC.
    G15394543Courtesy of TESLA, INC.

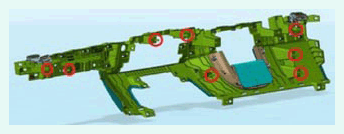

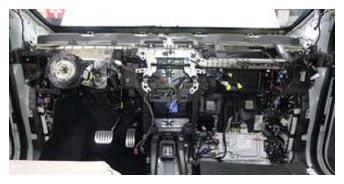

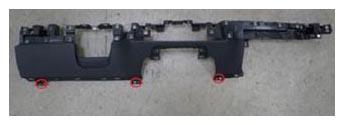

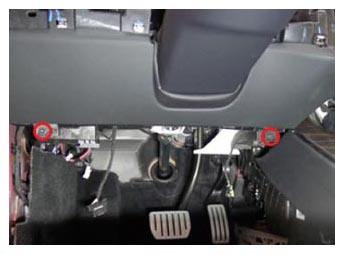

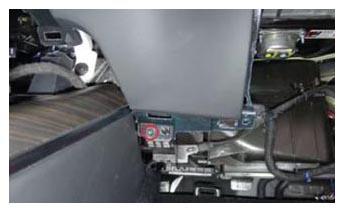

  26. Fasten the tabs (x8), and then install the screws (x3) that attach the lower instrument panel.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    NOTE: Secure only the screws located at the bottom of the assembly. The remainder of screws are fastened at a later step.
    G15394544Courtesy of TESLA, INC.
    G15394545Courtesy of TESLA, INC.
    G15394546Courtesy of TESLA, INC.
    G15394547Courtesy of TESLA, INC.
    G15394548Courtesy of TESLA, INC.
  27. Install the steering column lower shroud. See Shroud - Lower - Steering Column (Remove and Replace) .
  28. Install the steering column upper shroud. See SHROUD - UPPER - STEERING COLUMN (REMOVE AND REPLACE) .
  29. Install the driver outboard jumper duct. See Duct - Jumper - Outboard - Driver (Remove and Replace .
  30. Install the driver instrument panel duct. See Duct - Instrument Panel - Driver (Remove and Replace) .

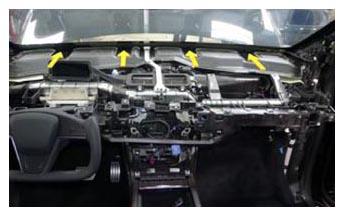

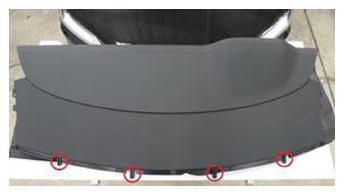

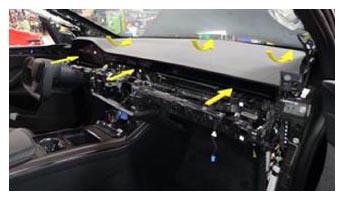

  31. With an assistant, install the instrument panel sub-assembly.
    NOTE: Slide the instrument panel sub-assembly into the vehicle.
    NOTE: Make sure the front passenger airbag and the driver vent assembly have clearance past the lower instrument panel assembly.
    NOTE: Engage the instrument panel sub-assembly datums into the dash slots.
    G15394549Courtesy of TESLA, INC.
    G15394550Courtesy of TESLA, INC.
    G15394551Courtesy of TESLA, INC.

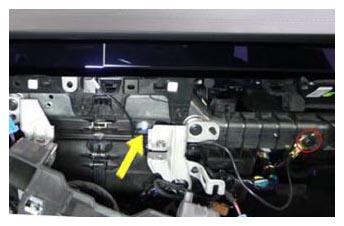

  32. Install the bolt that attaches the instrument panel ground harness.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    NOTE: Clip (x1).
    NOTE: Route behind the touchscreen RH bracket.
    G15394552Courtesy of TESLA, INC.

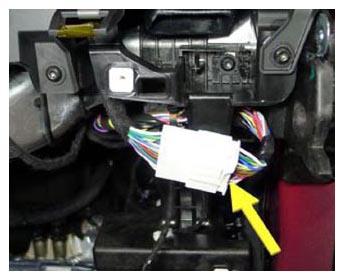

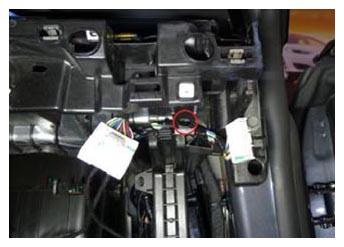

  33. Connect the instrument panel trim harness electrical connector.
    NOTE: Clip (x1)
    G15394553Courtesy of TESLA, INC.
    G15394554Courtesy of TESLA, INC.

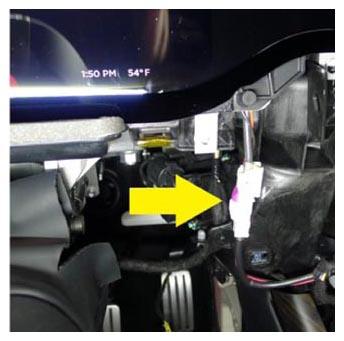

  34. Connect the instrument cluster harness electrical connector.
    G15394555Courtesy of TESLA, INC.

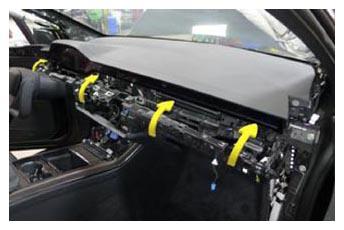

  35. Position the lower instrument panel assembly into the instrument panel sub-assembly.
    G15394556Courtesy of TESLA, INC.

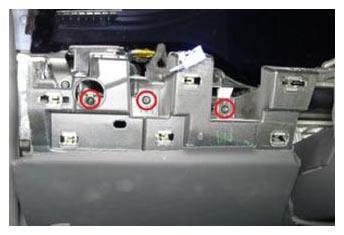

  36. Install the LH lower instrument panel screws (x3).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394557Courtesy of TESLA, INC.

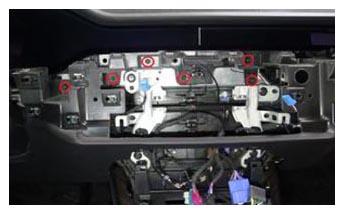

  37. Install the center lower instrument panel screws (x6).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394558Courtesy of TESLA, INC.

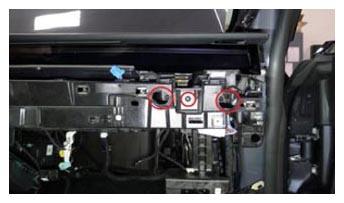

  38. Install the RH lower instrument panel screws (x3).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394559Courtesy of TESLA, INC.
  39. Install the main instrument panel decor. See DECOR - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .

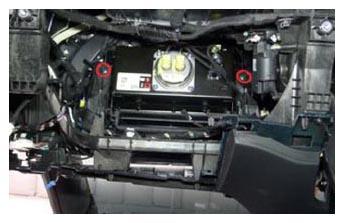

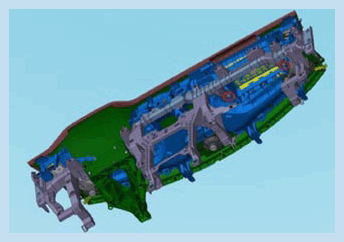

  40. Install the bolts (x2) that attach the instrument panel carrier cross beam.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15394560Courtesy of TESLA, INC.
    G15394561Courtesy of TESLA, INC.

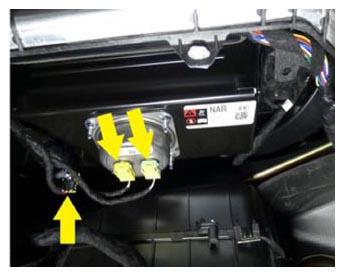

  41. Connect the front passenger airbag electrical connectors (x3).
    G15394562Courtesy of TESLA, INC.
  42. Install the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace) .

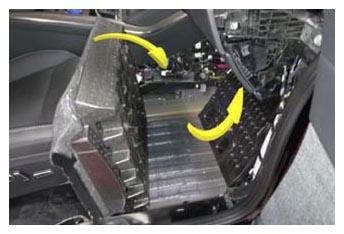

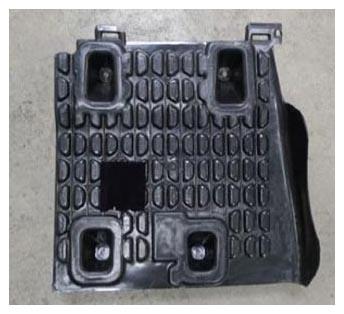

  43. Install the RH footrest panel.
    NOTE: Rotate the RH footrest panel into the vehicle. Fold the RH primary support carpet down.
    G15394563Courtesy of TESLA, INC.
    G15394564Courtesy of TESLA, INC.

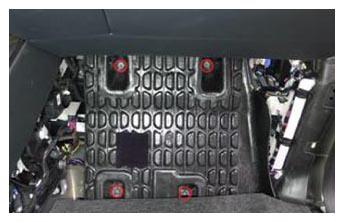

  44. Install the bolts (x2) and nuts (x2) that attach the RH footrest panel to the body.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15394565Courtesy of TESLA, INC.

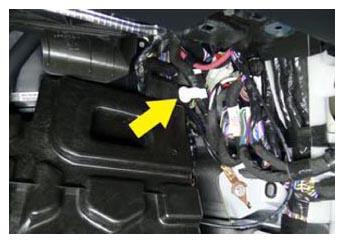

  45. Fasten the electrical harness clip to the RH footrest panel.
    G15394566Courtesy of TESLA, INC.

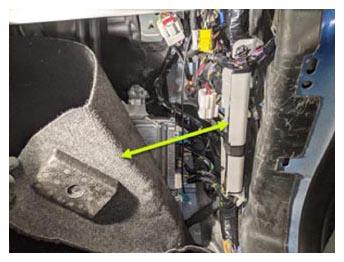

  46. Fold the RH main carpet back into place.
    G15394567Courtesy of TESLA, INC.
  47. Install the glove box. See GLOVE BOX (REMOVE AND REPLACE) .
  48. Install the front passenger knee airbag. See Knee Airbag - Front Passenger (Remove and Replace) .
  49. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  50. Install the RH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace) .
  51. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  52. Install the RH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  53. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  54. Install the RH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  55. Install the RH instrument panel middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - RH (REMOVE AND REPLACE) .

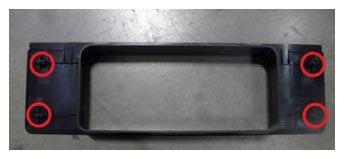

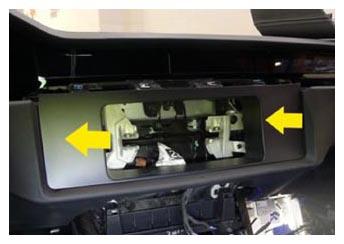

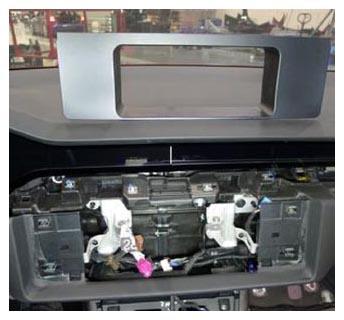

  56. Fasten the tabs (x4) that attach the IP closeout panel.
    G15394568Courtesy of TESLA, INC.
    G15394569Courtesy of TESLA, INC.
    G15394570Courtesy of TESLA, INC.
  57. Install the touchscreen. See Touchscreen - Rear (Remove and Replace) .
  58. Install the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace) .
  59. Install the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  60. Install the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  61. Install the LH instrument panel middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  62. Install the driver knee airbag. See Knee Airbag - Driver (Remove and Replace) .
  63. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  64. Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  65. Install the steering yoke/wheel. See Steering Yoke/Wheel (Remove And Replace) .
  66. Install the driver airbag. See Airbag - Driver (Remove and Replace) .
  67. Install the wiper module. See Wiper Module (Remove and Replace) .
  68. Install the cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .
  69. Install the RH wiper arm. See Wiper Arm - RH (Remove and Replace) .
  70. Install the LH wiper arm. See Wiper Arm - LH (Remove and Replace) .
  71. Reconnect LV power. See LV Power (Disconnect and Connect) .
  72. Install the underhood storage unit. See Underhood Storage Unit (Remove and Install) .
  73. Install the center console assembly. See Center Console Assembly - 1st Row (Remove and Install) .
  74. Adjust the steering column back to its original position.
  75. Close the RH front door.
  76. Calibrate the LH and RH rear doors by holding each upper B-pillar button in the down position.
  77. Raise the LH and RH front windows.
  78. Close the LH front door.
