Cover - Footwell - Passenger - Remove And Replace: Remove

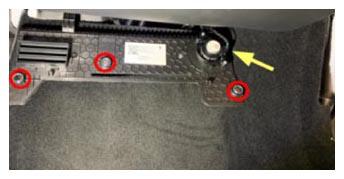

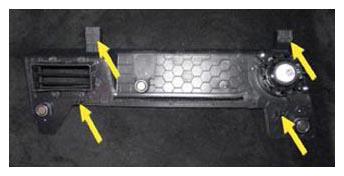

  1. Release the magnets (x3) that attach the passenger footwell cover to the vehicle, disconnect the electrical connector, and then remove the cover from the vehicle.
    G15394385Courtesy of TESLA, INC.
    G15394386Courtesy of TESLA, INC.
