Cover - Footwell - Outboard - Driver - Remove And Replace: Remove

  1. Move the driver seat rearward.
  2. Remove the LH front floor mat.
  3. Release the magnets (x2) that attach the driver outboard footwell cover to the vehicle, and then remove the cover from the vehicle.

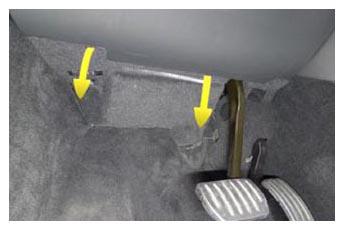

    G15394372Courtesy of TESLA, INC.

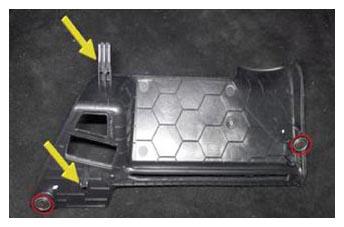

    G15394373Courtesy of TESLA, INC.
