Cover - Footwell - Outboard - Driver - Remove And Replace: Install

  1. Position the driver outboard footwell cover into the vehicle, and then secure the magnets (x2) that attach the cover to the vehicle.

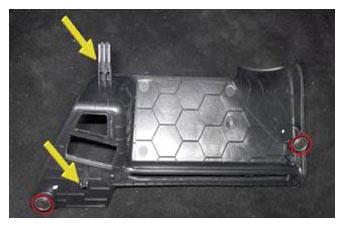

    G15394374Courtesy of TESLA, INC.

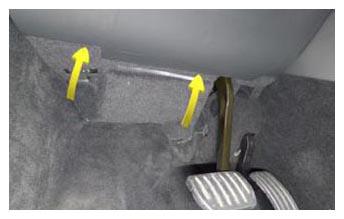

    G15394375Courtesy of TESLA, INC.
  2. Install the LH front floor mat.
  3. Move the driver seat to original position.
