Cover - Footwell - Inboard - Driver - Remove And Replace: Install

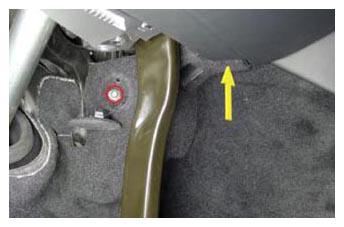

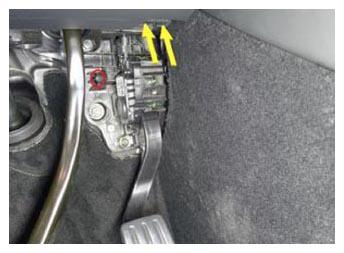

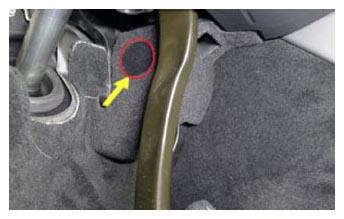

Position the driver inboard footwell cover into the vehicle, and then install the clip and screw that attach the cover to the vehicle.
1 N.m (.7 ft-lbs)

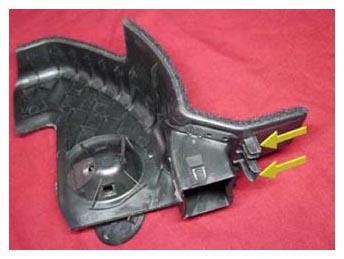

NOTE: Align the datums and footwell vent before installing the screw.

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the driver outboard footwell cover. See COVER - FOOTWELL - OUTBOARD - DRIVER (REMOVE AND REPLACE) .
