Aero Lens - Instrument Panel - Remove And Replace: Install

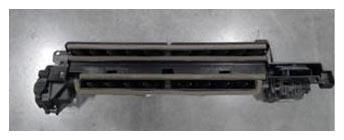

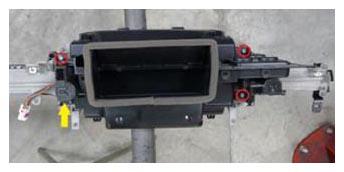

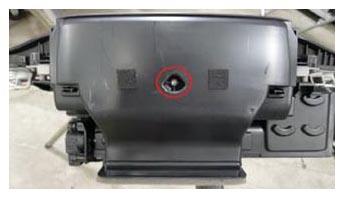

  1. Install the screws (x5) that attach the driver vent assembly to the instrument panel aero lens.

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394317Courtesy of TESLA, INC.
    G15394318Courtesy of TESLA, INC.
    G15394319Courtesy of TESLA, INC.

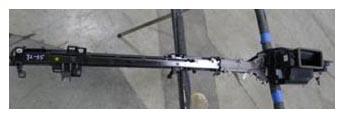

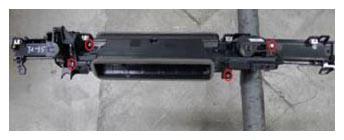

  2. Install the passenger vent assembly screws (x4).

    2 N.m (1.5 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394320Courtesy of TESLA, INC.
    G15394321Courtesy of TESLA, INC.
    G15394322Courtesy of TESLA, INC.

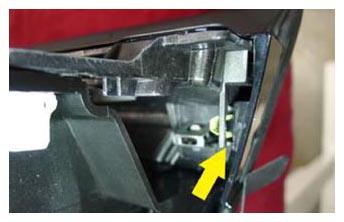

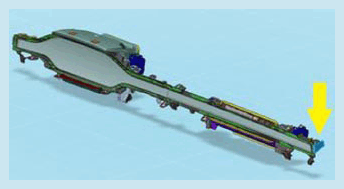

  3. Fasten the RH aero lens end cap clip.
    G15394323Courtesy of TESLA, INC.
    G15394324Courtesy of TESLA, INC.

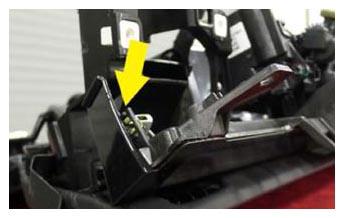

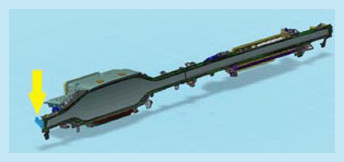

  4. Fasten the LH aero lens end cap clip.
    G15394325Courtesy of TESLA, INC.
    G15394326Courtesy of TESLA, INC.

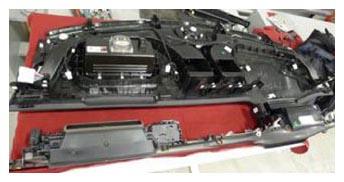

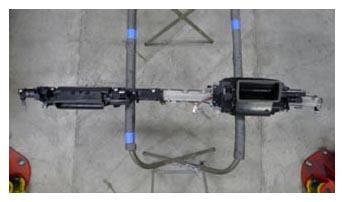

  5. Position the instrument panel aero lens to the instrument panel sub-assembly.
    NOTE: Align the tabs (x8) from the instrument panel sub-assembly into the instrument panel aero lens.
    G15394327Courtesy of TESLA, INC.
    G15394328Courtesy of TESLA, INC.
    G15394329Courtesy of TESLA, INC.

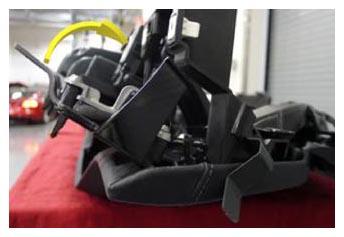

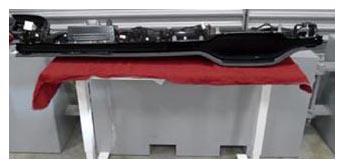

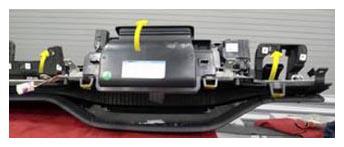

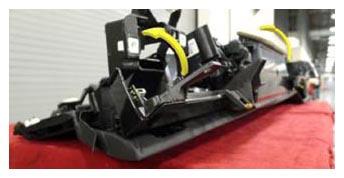

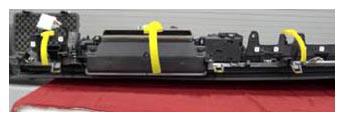

  6. Rotate the instrument panel aero lens into the instrument panel sub-assembly and fasten it with tabs (x8).
    NOTE: Rotate the instrument panel sub-assembly rearward to engage the tabs (x8).
    G15394330Courtesy of TESLA, INC.
    G15394331Courtesy of TESLA, INC.
    G15394332Courtesy of TESLA, INC.
    G15394333Courtesy of TESLA, INC.
    G15394334Courtesy of TESLA, INC.

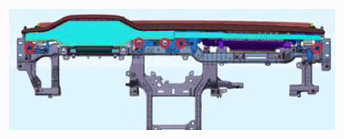

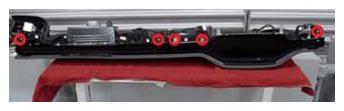

  7. Install the screws (x5) that attach the instrument panel aero lens to the instrument panel sub-assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394335Courtesy of TESLA, INC.
    G15394336Courtesy of TESLA, INC.

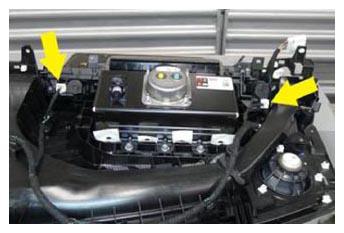

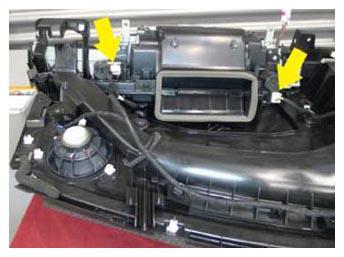

  8. Connect the air wave ventilation electrical connectors (x4).
    G15394337Courtesy of TESLA, INC.
    G15394338Courtesy of TESLA, INC.

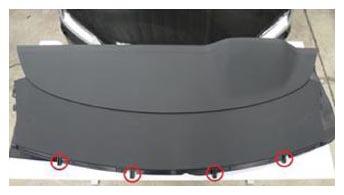

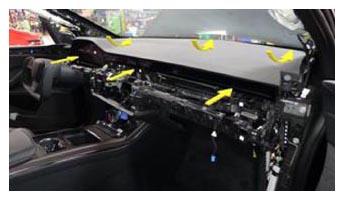

  9. With an assistant, install the instrument panel sub-assembly.
    NOTE: Slide the instrument panel sub-assembly into the vehicle.
    NOTE: Make sure the front passenger airbag and the driver vent assembly have clearance past the lower instrument panel assembly.

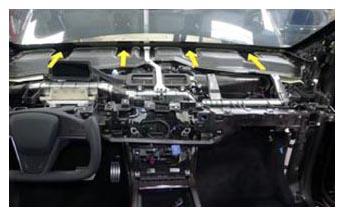

    NOTE: Engage the instrument panel sub-assembly datums (x4) into the dash slots.
    G15394339Courtesy of TESLA, INC.
    G15394340Courtesy of TESLA, INC.
    G15394341Courtesy of TESLA, INC.

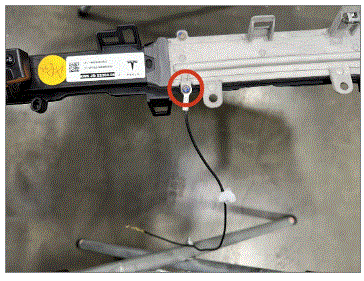

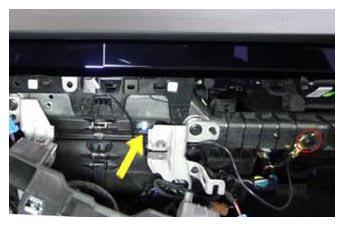

  10. Install the bolt that attaches the instrument panel ground harness.

    3.5 N.m (2.6 ft-lbs)

    NOTE: Route behind the touchscreen RH bracket.
    NOTE: If using part revision 1562948-70-D on a non-HW4 vehicle, add ground strap 1679240-00-A to the aero lens assembly.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15394342Courtesy of TESLA, INC.
    G00645932Courtesy of TESLA, INC.

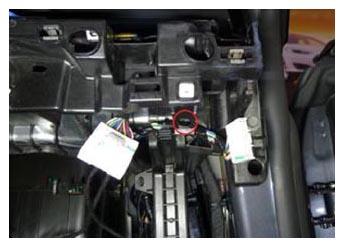

  11. Connect the instrument panel trim harness electrical connector.
    NOTE: Clip (x1)
    G15394343Courtesy of TESLA, INC.
    G15394344Courtesy of TESLA, INC.

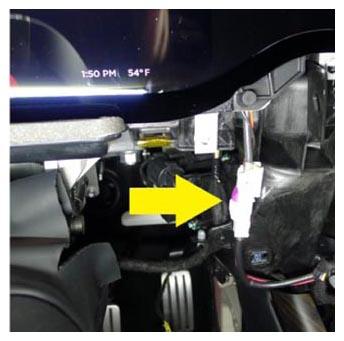

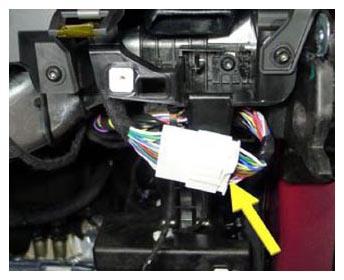

  12. Connect the instrument cluster harness electrical connector.
    G15394345Courtesy of TESLA, INC.

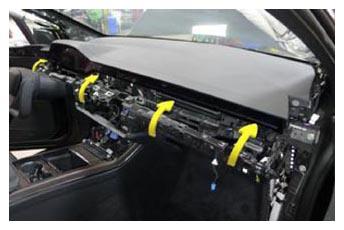

  13. Position the lower instrument panel assembly into the instrument panel sub-assembly.
    G15394346Courtesy of TESLA, INC.

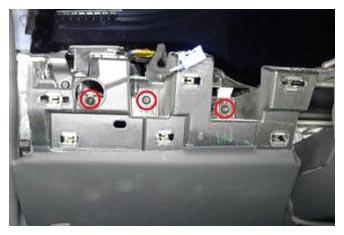

  14. Install the LH lower instrument panel screws (x3).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394347Courtesy of TESLA, INC.

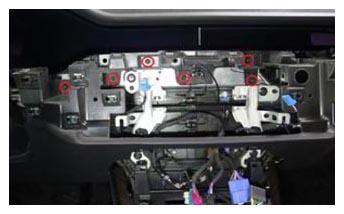

  15. Install the center lower instrument panel screws (x6).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394348Courtesy of TESLA, INC.

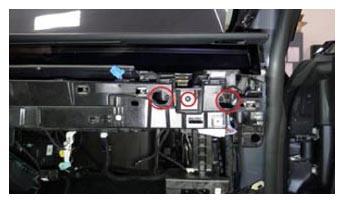

  16. Install the RH lower instrument panel screws (x3).

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15394349Courtesy of TESLA, INC.

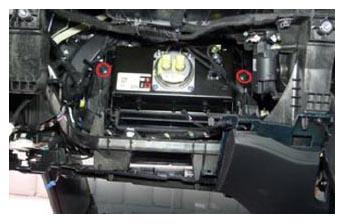

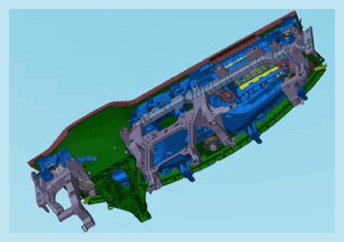

  17. Install the bolts (x2) that attach the instrument panel carrier cross beam.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15394350Courtesy of TESLA, INC.
    G15394351Courtesy of TESLA, INC.

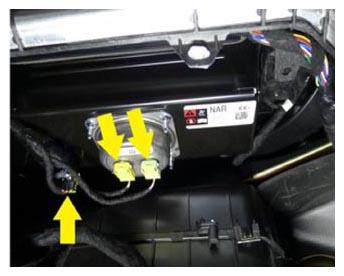

  18. Connect the front passenger airbag electrical connectors (x3).
    G15394352Courtesy of TESLA, INC.
  19. Install the front passenger instrument panel duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace) .
  20. Install the main instrument panel decor. See DECOR - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  21. Install the glove box. See GLOVE BOX (REMOVE AND REPLACE) .
  22. Install the front passenger knee airbag. See Knee Airbag - Front Passenger (Remove and Replace) .
  23. Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH (Remove and Replace) .
  24. Install the front passenger footwell cover. See COVER - FOOTWELL - PASSENGER (REMOVE AND REPLACE) .
  25. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  26. Install the RH front sill panel trim. See Trim - Sill Panel - Front - LH (Remove and Replace) .
  27. Install the front passenger floor mat.
  28. Install the RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  29. Install the RH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  30. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  31. Install the RH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  32. Install the RH instrument panel middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - RH (REMOVE AND REPLACE) .

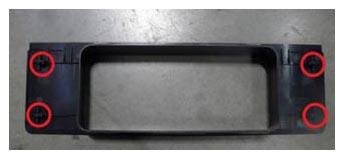

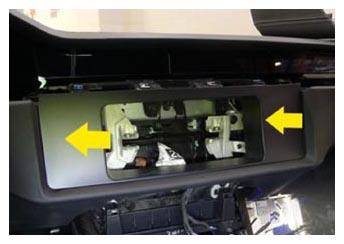

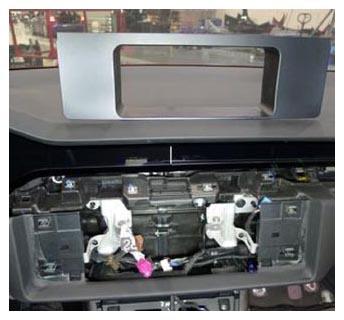

  33. Fasten the tabs (x4) that attach the IP closeout panel.
    G15394353Courtesy of TESLA, INC.
    G15394354Courtesy of TESLA, INC.
    G15394355Courtesy of TESLA, INC.
  34. Install the touchscreen. See Touchscreen - Rear (Remove and Replace) .
  35. Install the instrument panel service panel. See Service Panel - Instrument Panel (Remove and Replace) .
  36. Install the center console phone dock. See Phone Dock - Center Console (Remove and Replace) .
  37. Reconnect LV power. See LV Power (Disconnect and Connect) .
  38. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  39. Restore the front passenger seat back to its original position.
  40. Calibrate the RH rear door by holding the upper B-pillar button in the down position.
  41. Close the RH front door.
  42. Install the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  43. Install the LH sun visor bezel A-pillar trim. See Trim - A-Pillar - Sun Visor Bezel - LH (Remove and Replace) .
  44. Install the LH instrument panel middle trim. See TRIM - MIDDLE - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  45. Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  46. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  47. Restore the steering column back to its original position.
  48. Restore the driver seat back to its original position.
  49. Calibrate the LH rear door by holding the upper B-pillar button in the down position.
  50. Raise the LH and RH front windows.
  51. Close the LH front door.
