Tweeter - Rear Door - LH - Remove And Replace: Remove

  1. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
  2. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .

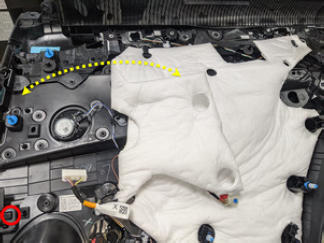

  3. Release the NVH pad from the front side of the rear door trim panel.
    G15409086Courtesy of TESLA, INC.

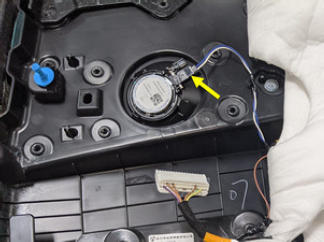

  4. Disconnect the LH rear door tweeter electrical connector.
    G15409087Courtesy of TESLA, INC.

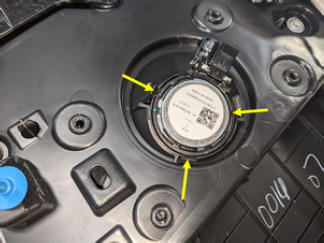

  5. Release the tabs (x3) that attach the LH rear door tweeter to the door trim panel, and then remove the tweeter from the assembly.
    G15409088Courtesy of TESLA, INC.
