Tweeter - Rear Door - LH - Remove And Replace: Install

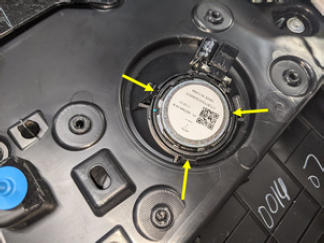

  1. Position the LH rear door tweeter to the door trim panel, and then secure the tabs (x3) that attach the tweeter to the assembly.
    G15409089Courtesy of TESLA, INC.

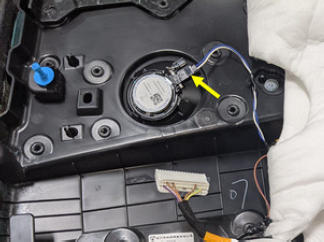

  2. Connect the LH rear door tweeter electrical connector.
    G15409090Courtesy of TESLA, INC.

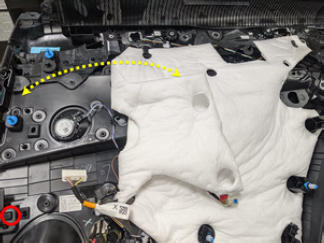

  3. Secure the NVH pad to the front side of the rear door trim panel.
    G15409091Courtesy of TESLA, INC.
  4. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
  5. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
