Speaker - Rear Door - LH - Remove And Replace: Remove
- Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace) .
- Remove the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace) .
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .

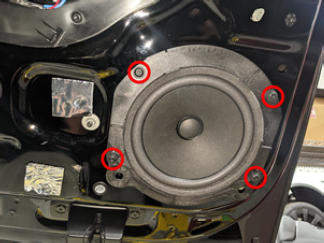

- Remove and discard the bolts (x4) that attach the LH rear door speaker to the LH rear door.
3.5 N.m (2.6 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket

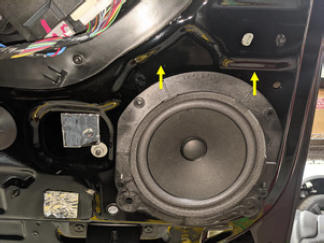

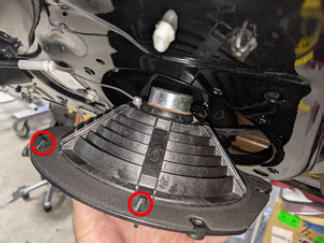

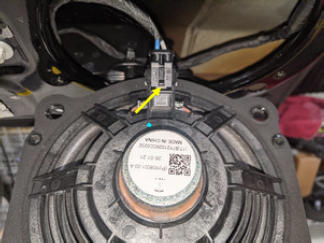

- Release the tabs (x2) that attach the LH rear door speaker to the LH rear door, disconnect the electrical connector, and then remove the speaker from the door.
