Speaker - Liftgate - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.
  3. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  4. Remove the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .
  5. Remove the screws (x2) that attach the LH liftgate speaker to the liftgate, remove the speaker from the liftgate, and then disconnect the electrical connector.

    2.3 N.m (1.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket

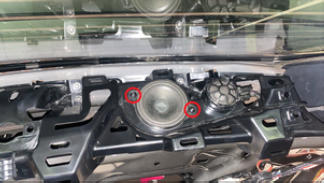

    G15409056Courtesy of TESLA, INC.

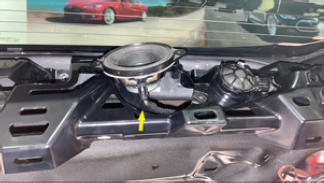

    G15409057Courtesy of TESLA, INC.
