Speaker - Liftgate - LH - Remove And Replace: Install

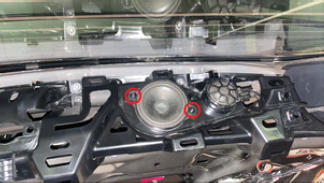

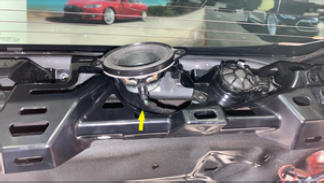

- Position the LH liftgate speaker onto the liftgate, connect the electrical connector, and then install the screws (x2) that attach the speaker to the liftgate.
2.3 N.m (1.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket
- Install the liftgate speaker grille. See Grille - Speaker - Liftgate (Remove and Replace) .
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
- Close the liftgate.
- Raise the LH front window and close the LH front door.
